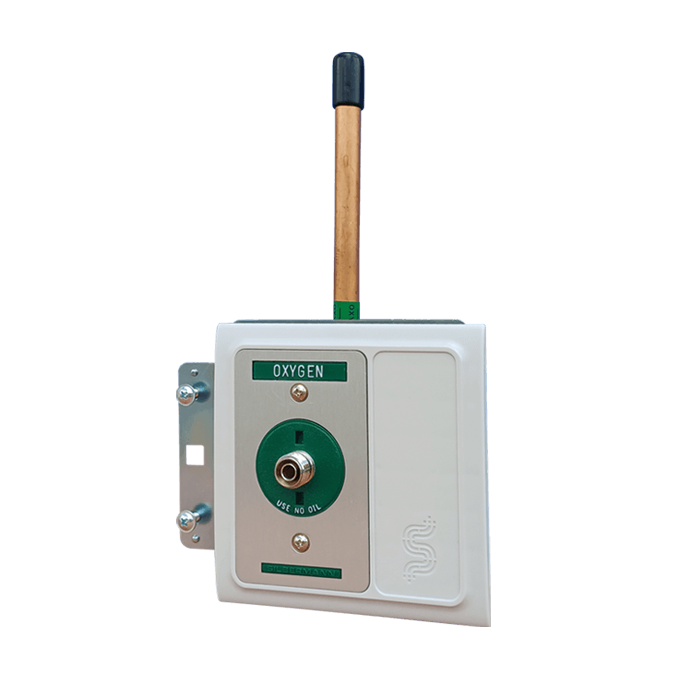

DISS Type

Silbermann designs and manufactures Diss-type medical gas outlets, known as terminal units, to comply with NFPA 99, ISO 9170-1, and CGA-V5 standards.

They are durable and safely connected to medical equipment, ensuring constant and reliable gas flow for patients.

Suitable for various hospital applications like anesthesia, ICU, and respiratory therapy.

DISS-type outlets are designed by industrial designers, helping to create a pleasant and comfortable environment for both patients and medical staff.

Each outlet is thoroughly tested for flow and leakage, and cleaned for oxygen service before shipping.

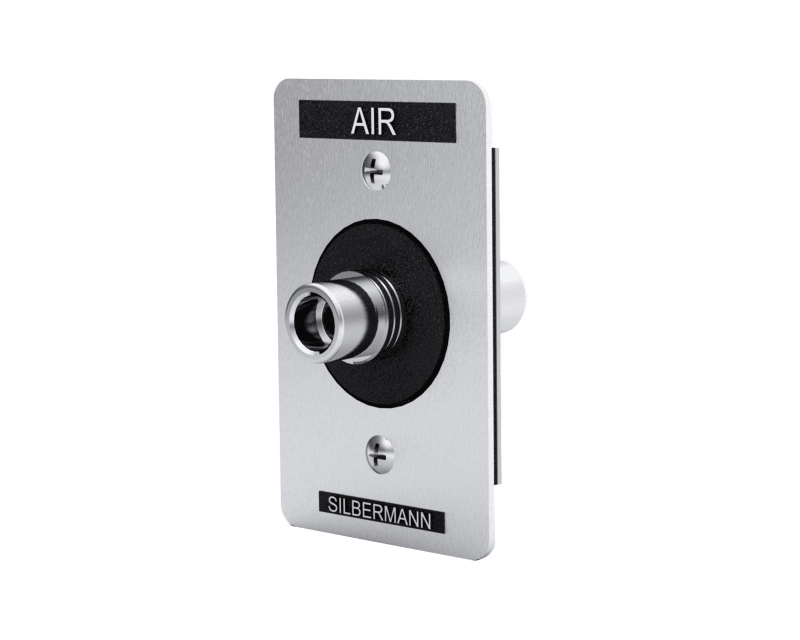

They are compatible with a range of gas types, including Oxygen, Medical Air, and Vacuum, and feature color-coded identification for improved safety and easy recognition.

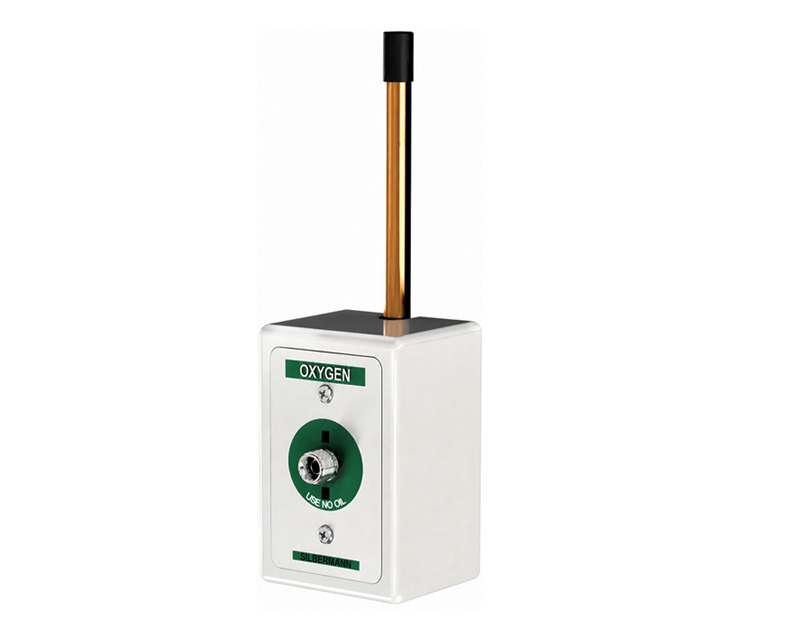

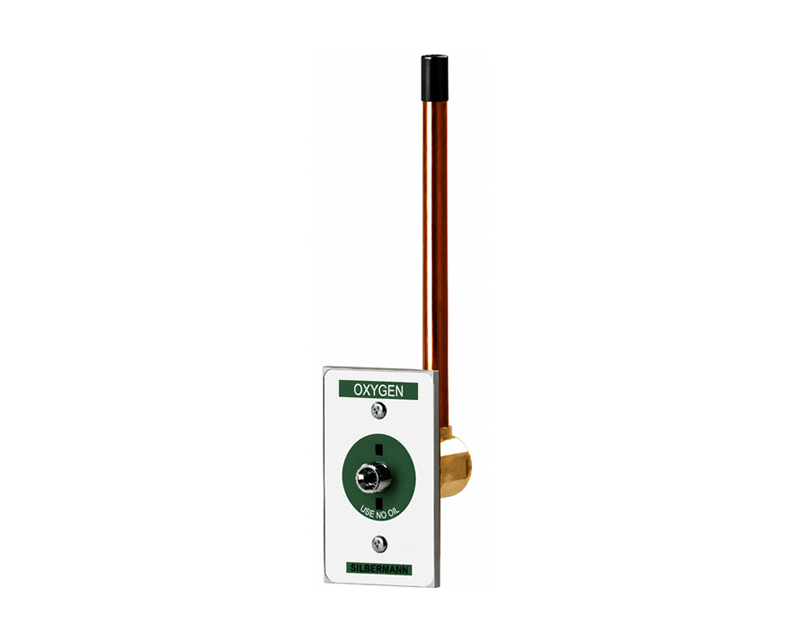

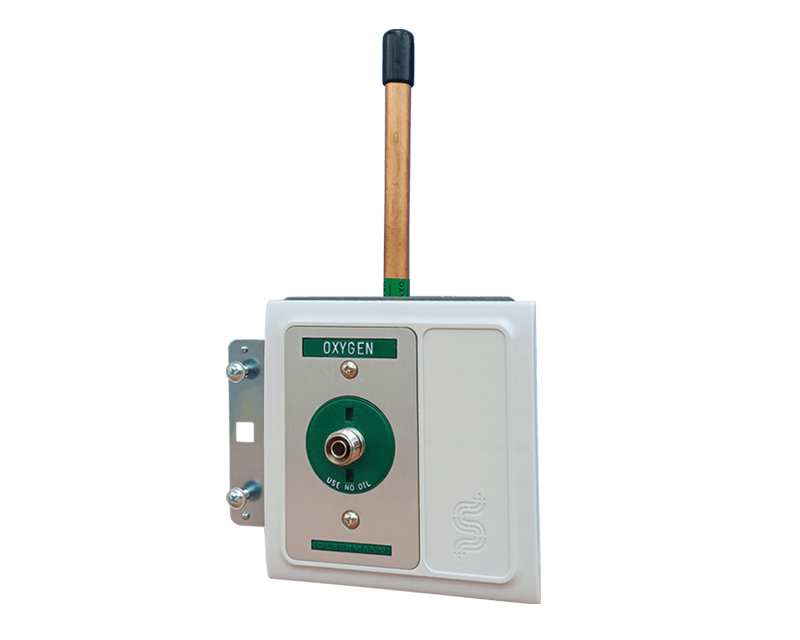

Engineered for flexibility, the outlets can be installed on walls, panels, or pendants to meet the needs of various clinical settings

Downloads:

Spec Sheets
  • Accepts DISS gas-specific adapters.
  • All outlets are 100% hydrostatic and
    tested     for leaks.
    The outlets are factory-assembled    ,
    degreased, and cleaned for medical
    gas service.
  • Indexed to eliminate interchangeability
    of gas services.
  • 360-degree swivel inlet pipe
    for ease of installation.
  • Safe plug-in & release allowing parking
    of the male adapter on the outlet thread
    without pressure applied.
  • Low maintenance due to the use of
    VITON seals in front assembly (latch value).
  • Modular singles - designed to provide
    ganging of rough-in modules in the field
    to form multiple at any order with
    120 mm spacing.



Medical Gas System Standards:

  • NFPA99, EN ISO 7396-1 & G0-1
    requirements..



Applicable Standards:

  • NFPA99, ISO 9170-1, CGA-V5.



Silbermann’s Quality Management System:

  • EN ISO 13485-2016
  • ISO 9001-2015
  • The medical gas outlet shall be
    SILBERMANN DISS type manufactured
    according to NFPA99.
  • The outlet shall be gas-specific
    by the DISS system.
  • The positive and negative pressure outlet
    shall consist of primary and secondary
    check valves to allow testing and online
    maintenance.     The outlet shall be
    manufactured with 175 mm long, type K,
    12.7 mm (1/2”) OD copper pipe.
    Rough-in pipe shall be silver brazed
    to the outlet body.
  • With the rough-in mounted, the outlet
    shall be depth, adjustable to
    compensate for     various wall thicknesses.
  • The quick connect outlet shall comply
    with ISO 9170-1 & CGA-V5 standard types
    and accept only the corresponding
    DISS Gas Specific Adapter.
  • Pressure drop of less than 20 Kpa
    through the outlet at 120 LPM and
    350 Kpa (3.5 Bar) inlet pressure.
    When fully open, the outlet allows
    a flow of up to 600LPM at a pressure
    of 400 KPa (4 Bars).
