Double Overhead Suspension Arms System for Intensive Care

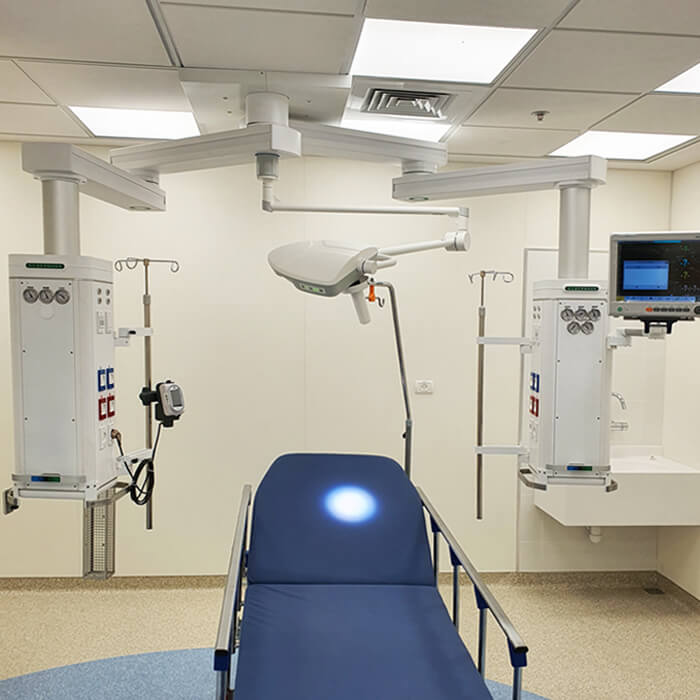

Silbermann Double Overhead Suspension Arms System
were designed in cooperation with top ICU medical staff
to ensure continuous and intensive workflow
during critical times.

Our system is designed to be flexible and able
to conform to various configurations depending
on the space requirements
The consoles are 100% customizable in size,
medical gas outlets, integrated accessories
as well as blank panels for future upgrading.

Downloads:

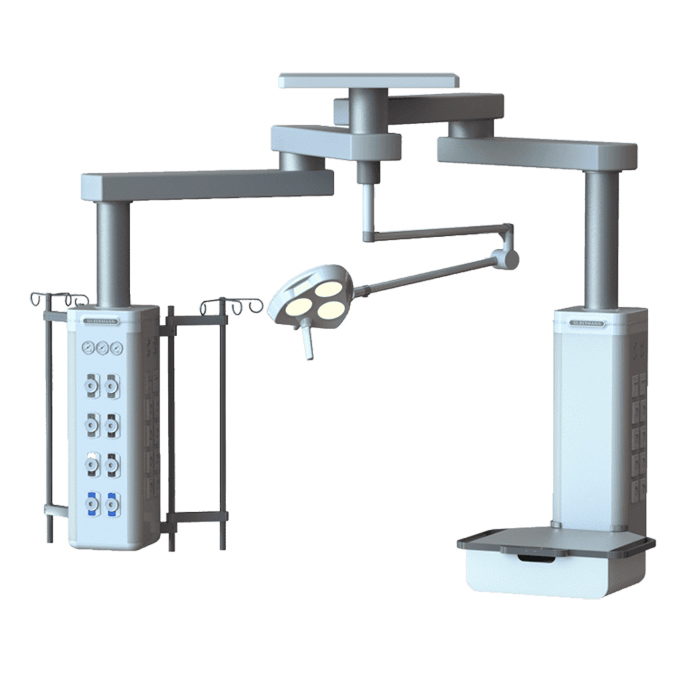

The double overhead suspension arm offers:
■  Procedures and tasks are easily adapted.

■  Reduction of work and personal
    movement is attained.

■  Good design allows for overall
     overview.

■  Easy moving and positioning.

■  Locked position.

■  Maximum access around the patient.

■  Better cables and tube management.

■  Reduced space requirements,
    and unlimited equipment combinations.

■  Practically all accessories are
    detachable and interchangeable.



With its modular design and high load capacity,
the two-arm units can carry a variety of
instruments for
 the ICU like respirators,
monitors, IV pumps, Syringe pumps, etc.



Practical Design

Pneumatic or mechanical brakes
in the bearing assemblies
prevent inadvertent creeping movement.

Pneumatic brake control is installed
on both service heads via one or two buttons.

There is an option to add a pneumatic service
head rotation brake.

Ball bearings are maintenance-free.



Standards

The Overhead Suspension arm meets
the requirement of the NFPA99C, EN793 and EN737-3.


Dry side console:

“Dry side” console for monitors and ventilators.
It allows for the attachment of numerous (550x500 mm)
Shelves front or back mounted.
Drawers under the shelves are available.
Accessories can be clamped to optional hanging rails,
which are mounted, on the shelf's sides.
The “dry” console provides optional docking facilities.

to various carts carrying instruments.

The “dry” console provides electric sockets, medical
gas outlet, gauges, equipotential pins, a connector
for data transfer, video recording telephone, intercom,

nurse call, code blue, etc.
The “dry” console comes in various lengths.



“Wet side” console:

Wet side console for infusion/syringe pumps.
The “wet side” console is attached to the articulated
arm on the right side of the patient.
Four stainless steel pump poles with 2 extendable
4 hooks rod may be attached to the service head
The poles are height adjusted.
Height-adjustable hanging rails may be
mounted on the sides of the console.
An optional small tray (400x300 mm)
can be Mounted on the service head.
Provisions are provided for electric sockets,
medical gas outlets, equipotential pins,
and various electronic connectors.
