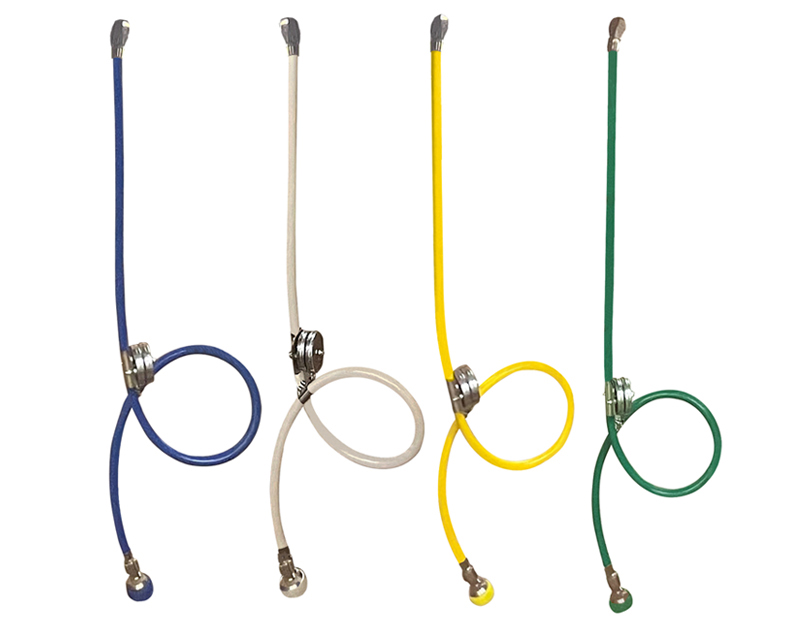

Ceiling Mounted Flexible Hose

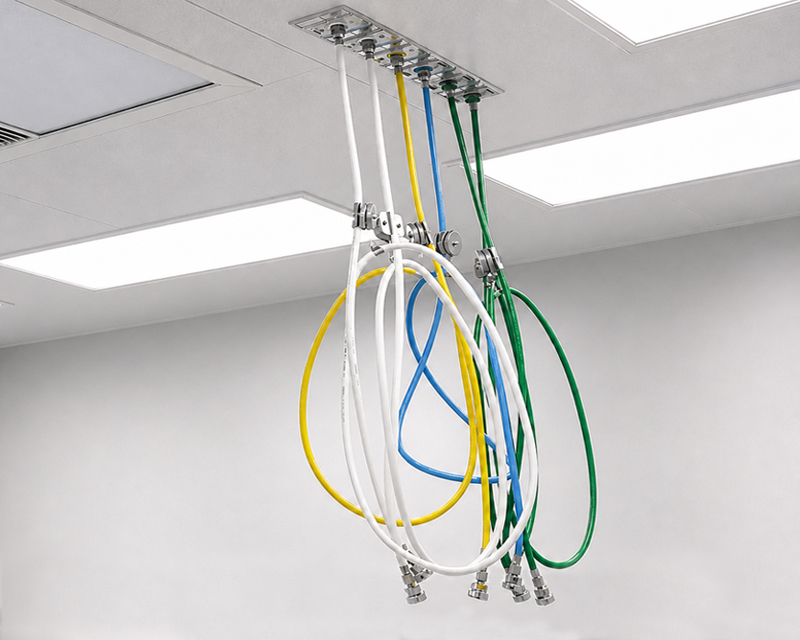

Ceiling-mounted Flexible Hose is used
for delivering gas through a
retractable hose in large rooms like OTs.

On one end, this hose assembly is
connected to the ceiling gas outlet
with a DISS/NIST fitting that is
suitable for the required gas type.
On the other end, it is connected to a
portable gas outlet that has the same
gas coding as the ceiling outlet.

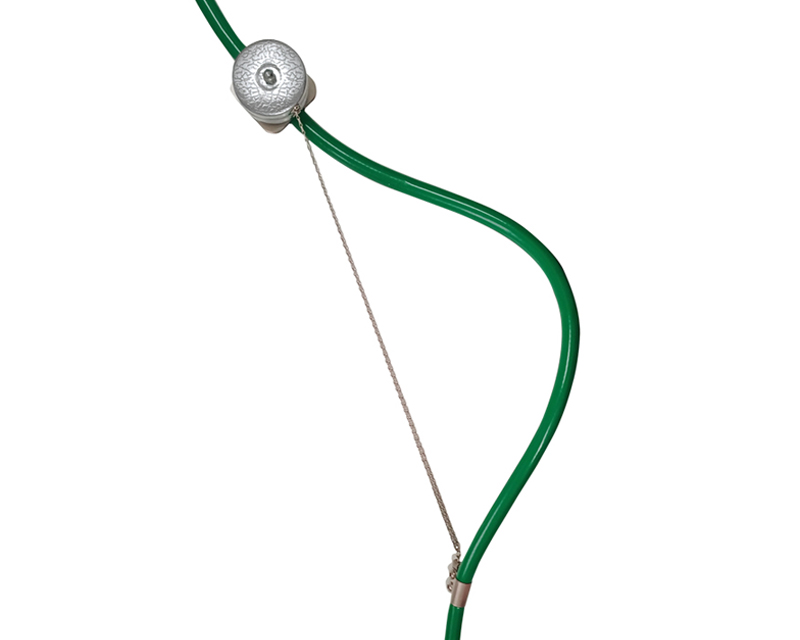

A pulley (key back) is attached
to the hose to easily adjust its
height according to the user's needs.

Downloads:

Spec Sheets
  • A quick connect outlet with flexibility
    in use - you can pull the hose down
    with its connecting the adapter and
    then releasing it,  to move back to
    its original place.
  • Cost-effective - alternative for using
    pendants in OTs.
  • It fits rooms where it is difficult to install
    outlets in the side walls.

Medical Gas System Standards:
NFPA 99, EN ISO 7396-1 & GO-1, HTM 02-01
requirements

Applicable Standards:
NFPA 99, ISO 9170-1, ISO 5359

Silbermann’s Quality Management System:
EN ISO 13485-2016, ISO 9001-2015

  • Hose length:
    •  maximum extension - 1.65 mm
    • retractable position - 1.20 m
  • Available for all medical gases:
    Oxygen, Vacuum, Medical Air,
    Nitrous-Oxide N2 and CO2.
  • Portable gas outlets that can be attached
    to the hoses are available in several
    standards  including DIN, ENV, Sil-Ohio,
    Puritan Bennet and British standard*.
  • Retractable hoses work with a pulley
    (key back). Each medical gas outlet
    and the hose has a gas coding to avoid
    inappropriate gas usage.
