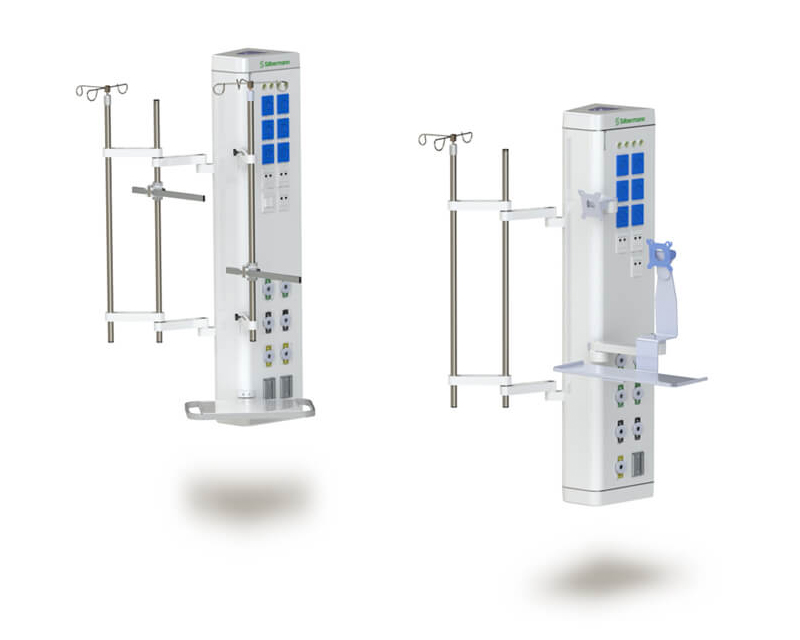

Compact Power Column for Critical Care Unit

Compact Vertical Power Column with Essential Equipment for Critical Care Units

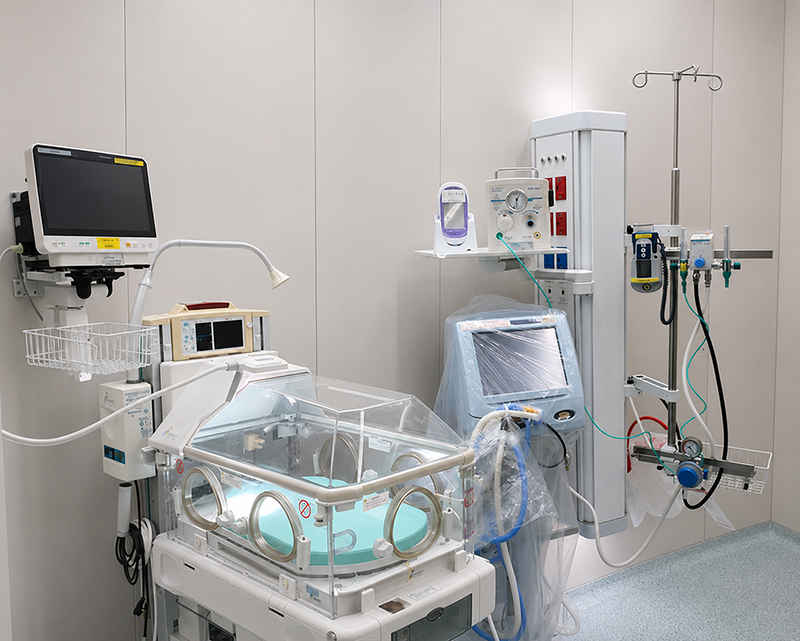

Silbermann’s Compact Power Column for Critical Care Unit, also known as vertical columns, supports use in demanding areas such as the ICU, NICU, and recovery wards.

Its space-saving, ergonomic design ensures that all essential services are within easy reach, helping medical teams work faster and more effectively.

These vertical headwalls organize medical equipment in simple, aesthetically appealing consoles.

The Compact Power Column for Critical Care Units presents an innovative approach to organizing and designing a workspace at hospitals, creating a more compact and neat workstation for the staff.

Request Information

Product's Downloads

Spec Sheet
Compact Power Column for Critical Care Unit
Compact Power Column for Critical Care Unit
Compact Power Column for Critical Care Unit
Compact Power Column for Critical Care Unit

Features and benefits

  • Easy Access to all medical equipment and accessories. Ensuring all services are at the patient’s bedside.
  • Cost-Effective – Can serve two beds simultaneously, from each column’s side.
  • Maximize free space in the room – patients and staff can move around more comfortably.
  • Creates a safer work area – all equipment and accessories are positioned in a specific place.
  • 4 Integrated vertical equipment management tracks for accessories and storage.
  • The power column may include various accessories: IV poles, examination lamp, monitor arms, and shelves with hanging rails and drawers, electric sockets, switches, nurse calls, data sockets, and medical gas outlets per  customer request.
  • Improved hygiene and aesthetics:
    • Designed to ensure easy cleaning for better infection control.
    • The column and all its accessories are above floor level.
  • White powder-coated paint/per customer request.
  • Image printing is possible per customer request.
  • lighting options can be added from above and below the column:
    • creates a pleasant and serene environment for the patients
    • helps the caregivers to move safely around the patients at night.
  • Applicable standards:
    • NFPA99
    • EN ISO 7396-1
    • G-01 &
    • HTM02-01
  • Silbermann’s Quality Management System:
    • ISO 9001-2015.
    • EN ISO 13485-2016.
    • CE marked by the notified body TÜV-SÜD.

Technical Data

  • Electric socket: American, British, German, Euro standard, and others. Equipotential sockets.
  • Lighting Options: Upper & lower integrated lighting Examination lamp (supplied separately)
  • Communication Options:
    • Monitor socket (RJ45)
    • Nurse call
    • Intercom
    • Code blue
  • Medical Gas Outlets:
    • Outlet type: Sil-Ohio (Diamond type), ENV 737-6, DIN 13260-2, BS 5682, DISS, NIST, PB, AGSS type, etc.
    • Gas type: Oxygen, Air, Nitrous Oxide (N2O), Nitrogen, CO2, Vacuum, Slide for Vacuum Bottle. Other (by customer specification).
  • Material: White powder-coated (RAL 9003 matt) aluminum.



  • Optional Equipment
    • Shelf
    • IV Poles
    • Monitor arm mounting
    • Keyboard and screen arm mounting
    • Hanging rail for secondary equipment
    • Lighting option enabled above and below the column















FAQ

What is the Silbermann Compact Power Column for Critical Care Units?
How is the Compact Power Column different from the standard Power Column?
Can the appearance of the column be customized?
Which services and accessories can be integrated into the column?
Which standards apply to the Compact Power Column?
