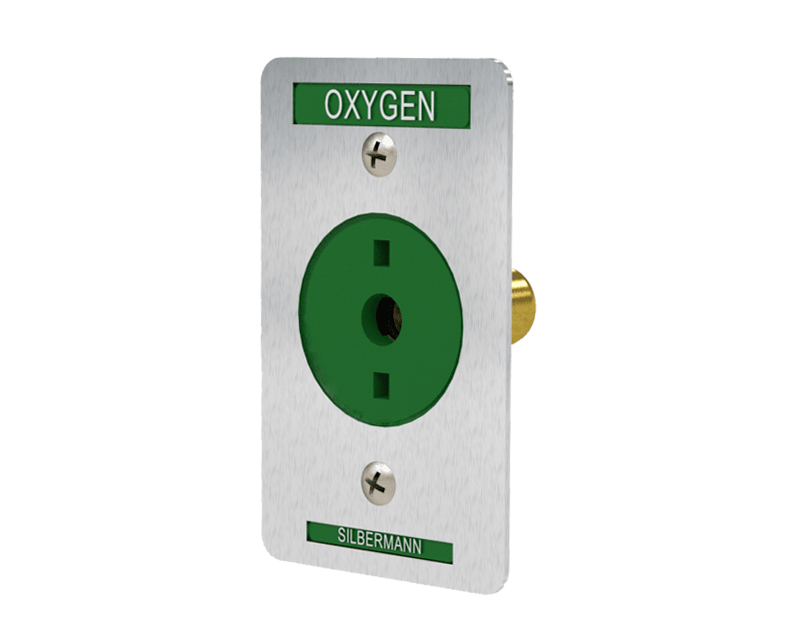

Sil-Ohio Diamond Type

Reliable Quick-Connect sil-ohio Gas Outlet for Continuous Delivery in Healthcare Settings

We design and manufacture our Sil-Ohio Diamond Type Medical Gas Outlet (Terminal Units) for long-lasting performance, ensuring consistent and reliable medical gas flow to patients and medical equipment in hospitals, clinics, ambulances, and more.

All outlets are fully tested for flow and leaks and cleaned for oxygen service before shipping.

Our Sil-Ohio Diamond Type gas Outlets are thoughtfully designed by industrial designers to provide a pleasant and attractive environment for both patients and medical staff.

Available in a variety of gas types, including oxygen and vacuum, with color-coded identification for easy recognition.

Multiple configurations are available upon request:

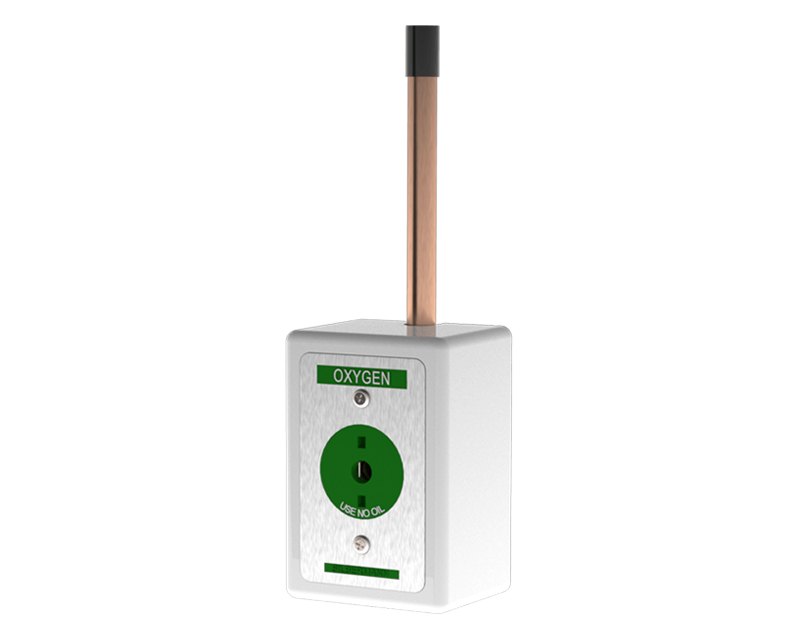

wall-mounted,

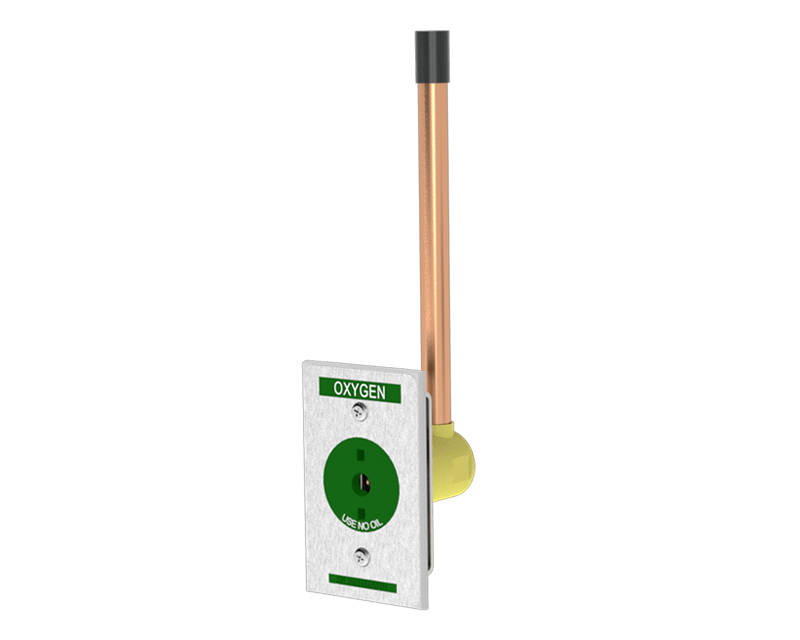

panel-mounted
pendant-mounted

Request Information

Downloads

Features and benefits

Accepts Sil-Ohio diamond- type gas-specific adapters.
Every SIL-Ohio medical gas outlet undergoes full leak testing and is supplied factory-assembled, degreased, and cleaned for safe medical gas service
Indexed to eliminate interchangeability of gas services.
360 deg swivel inlet pipe for ease of installation.
Low maintenance due to use of VITON seals in front assembly (latch value).

Medical Gas System Standards:
- NFPA99, EN ISO 7396-1 requirements.
Applicable Standards:
- NFPA99, ISO 9170-1.
Silbermann’s Quality Management System:
- CE marked by the notified body TÜV-SÜD.

Technical Data

The medical gas outlet shall be SILBERMANN Diamond type manufactured according to ISO 9170-1.
The outlet shall be gas-specific by indexing each front service panel to a gas-specific pin indexed rough-in module.
The outlet of positive and negative pressure shall consist of a primary and secondary check valves to allow testing and on-line maintenance, i.e., the front service panel shall be removable for service without the need to shut down the gas supply.
Front latch valve assembly shall incorporate an anodized aluminum front panel.
Outlet shall be manufactured with 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. Rough-in pipe shall be silver brazed to the outlet body.
With the rough-in mounted, the outlet shall be depth adjustable to compensate for various wall thicknesses.
The quick-connect outlet shall comply with ISO 9170-1 standard type and accept only corresponding Silbermann Diamond Gas Specific Adapter.
Pressure drop of less than 20 kPa through the outlet at 120 LPM and 350 Kpa (3.5 Bar) inlet pressure.
When fully open, the outlet allows a flow of up to 600LPM and pressure of 400 KPa (4 Bars).
