Ambulance Oxygen Delivery System Manual Changeover

The ambulance oxygen delivery system
Manual changeover is an essential part
of emergency medical services, providing patients
with a steady supply of oxygen while
they are being transported to
healthcare facilities.

The system manages 2 sources and
ensures a continuous supply,
with manual switching between the
left and right sources.

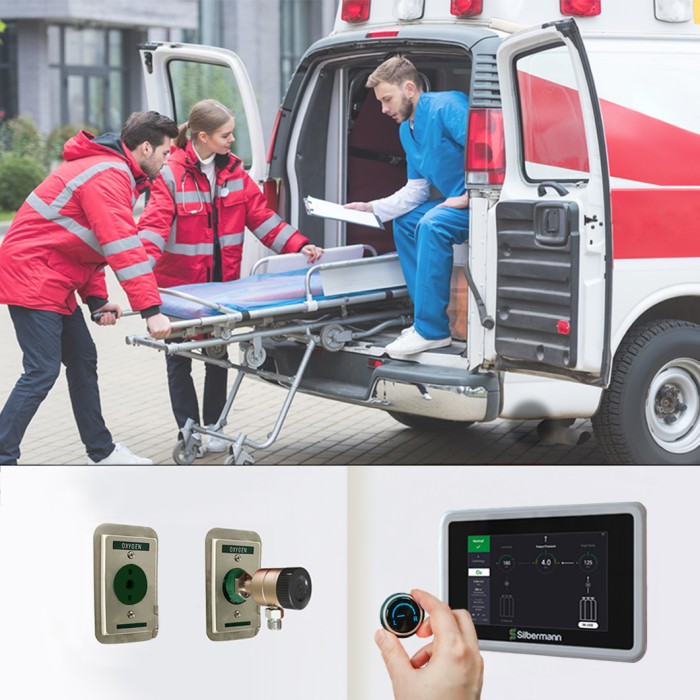

A touchscreen alarm panel keeps track
of the gas pressure in every cylinder
and alerts medical personnel if the pressure falls.

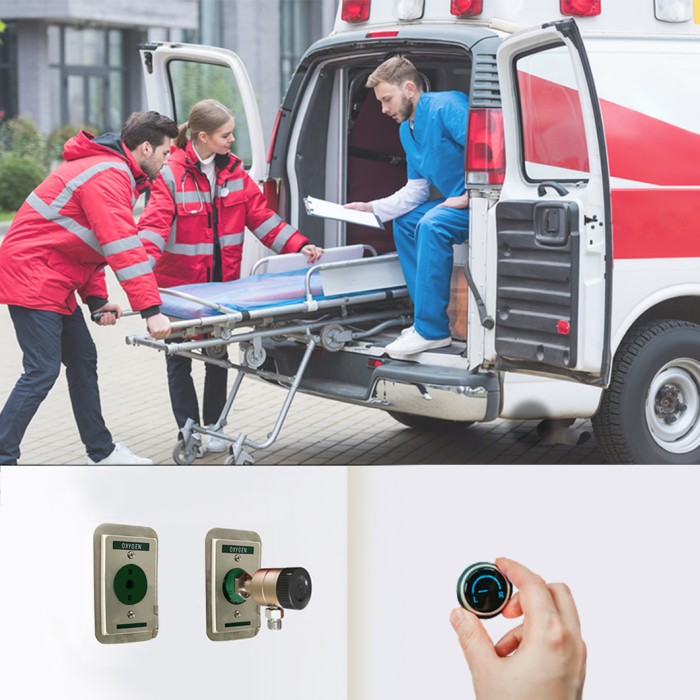

The oxygen outlets are designed for
simple and safe connections,
guaranteeing patients a consistent
and reliable supply of oxygen.
A pressure gauge monitors
the line pressure to ensure optimal
system performance.

Downloads:

Spec Sheets
  • Manual switchover between left and
    right cylinders via a control knob
    ensures a consistent and dependable
    oxygen supply.
  • Medical Gas outlets type:
    Sil-Ohio, ENV 737-6, Puritan Bennett
    type, DIN, British standard, DISS*.
  • Control Alarm panel monitor highlights:
    • Presenting the actual time left for
      treatment (in minutes) based on
      preset flow rate parameters.
    • Visual & audio alarm signals
      in case of low pressure.
    • 10.1” full HD LCD touchscreen -
      graphically and digitally displaying
      the cylinder gas pressure, alerting
      in case of a pressure drop.
    • Periodical maintenance alert.
    • Gas expiration date alert - an alert
      for the medical gas cylinder
      expiration date.
    • Log History File- Event logging,
      recording all alarms and panel activities.
    • Customizable text & language.
    • A color trend arc showing the gas
      pressure status at each cylinder.
    • Automatic adjustment of screen
      brightness (day & night mode).
    • Advanced Communication: TCP/ IP Modbus.
  • SMS and email alert when oxygen
    pressure reduces to a pre-set level - optional.
  • Tailor-made installation.



Applicable Standards:

ISO 10524, EN-1789, NFPA 1917

Silbermann’s Quality Management System:

ISO 9001-2015
ISO 13485-2016



* The quantity and types of oxygen gas outlets and adapters are available based
on customer requirements.

  • Gas sensors/Pressure 4-20 mA transmitters.
  • Oxygen Pressure Regulators**:
    • Input pressure: up to 200 bar
    • Output pressure: 3.5-4 bar (Regulated pressure)
    • Flow rate capacity of up to 100 liters per minute.
  • Flow selector 0-25 lpm - optional
  • Power Requirements:
    • Voltage: 12V DC supplied from the Ambulance
      Electrical Supply Power.
    • 5A Slow Blow fuse 5x20mm.



** Oxygen regulator with CGA 540 connector - optional
