Ambulance Oxygen Delivery System for one cylinder

The Ambulance oxygen delivery system is
a vital component of emergency medical
services enabling a continuous flow
of oxygen to patients in need
during transport to medical facilities.


Delivery System for one cylinder

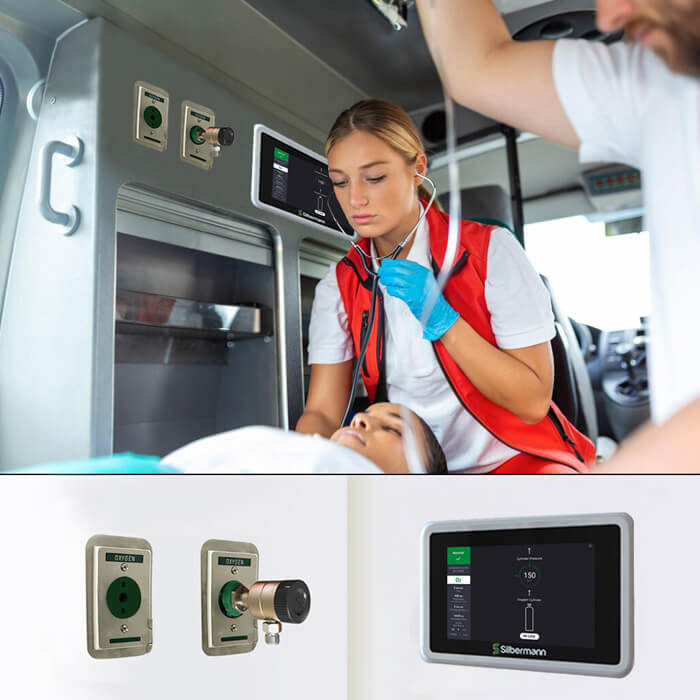

The Ambulance Oxygen Delivery System
consists of medical gas outlets
and a touchscreen control alarm panel.
The system guarantees that the patient
will receive a steady and reliable supply
of oxygen, while the alarm panel
monitors the gas pressure and alerts the
medical staff in case of a pressure drop.



Downloads:

Spec Sheets
  • 10.1” full HD LCD touchscreen -
    graphicly and digitally displaying the
    cylinder gas pressure and output
    pressure, alerting in case of a pressure drop.
  • SMS alert when oxygen pressure
    reduces to a pre-set level - optional.
  • Medical Gas outlet type:
    Sil-Ohio, ENV 737-6,
    Puritan Bennett type,
    DIN, British standard, DISS*.
  • Periodical maintenance alert.
  • Showing the remaining time until the
    cylinder’s oxygen supply is empty.
  • Gas expiration date alert - an alert
    for the medical gas cylinder expiration date.
  • Log History File- Event logging,
    recording all alarms and panel activities.
  • Web remote view on the Internet:
    online view accessible via a web browser.
    This website allows authorized users to
    remotely access and view the
    data in real-time.
  • Additional data: GPS data showing the
    current location of each ambulance by
    its number.



  • Customizable text & language.
  • Graphically and digitally display
    the actual status of the source—“
    In use” or “Empty.”
  • The Visual & audio alarm signals
    in case of low pressure in the cylinder.
  • 4G modem installed.

  • Advanced Communication:
    TCP/ IP Modbus.

  • Automatic adjustment of screen
    brightness (day & night mode).

Applicable Standards:

  • ISO 10524, EN-1789, NFPA 1917

Silbermann’s Quality Management System:

  • ISO 9001-2015
  • ISO 13485-2016



  • 10.1” full HD LCD touchscreen.
  • Medical Gas outlets
    Sil-Ohio, ENV 737-6, PB, DIN, BS, DISS*.
  • Gas sensors/Pressure 4-20 mA transmitter.
  • Oxygen Pressure Regulator:
    • Input pressure: up to 200 bar
    • Output pressure: 3.5-4 bar
      (Regulated pressure)
    • Flow rate capacity of up to 100 liters per minute.
  • Flexible gas hoses
  • Flow selector 0-25 lpm
  • Control card/PCB

Power Requirements

  • Voltage: 12V DC supplied from Ambulance Electrical Supply Power.
  • 5A Slow Blow fuse 5x20mm.



* Other types of gas outlets are available
    according to customers' requests.
