Anesthetic Gas Scavenging Inlet – Blower Type (AGSS/WAGD)

Safe disposal of waste anesthetic gases from operating rooms using a central scavenging system

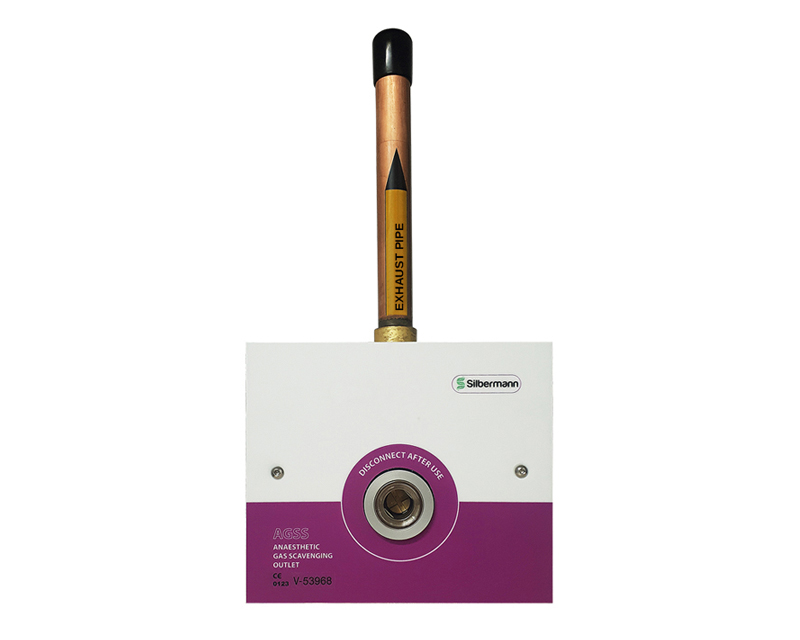

The SILBERMANN Anesthetic Gas Scavenging Inlet, Blower type, is designed to safely remove excess anesthetic gases from the operating theatre.

The Inlet is a quick-connect type and is connected to a Central Scavenging System.

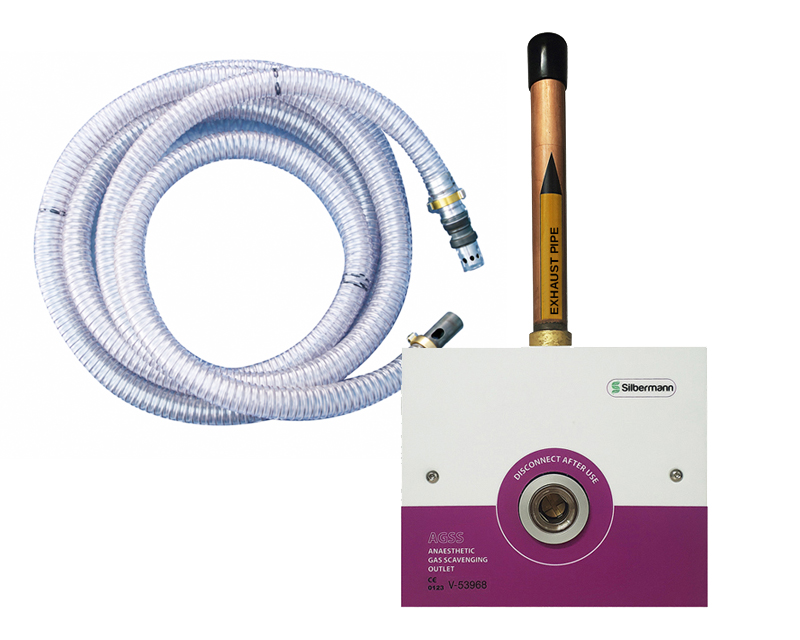

It is available in recessed, panel-mounted, or exposed configurations, with or without a hose assembly.

The product complies with the requirements of
ISO 7396-2 and NFPA 99.



Request Information

Product's Downloads

Features and benefits

  • Operation based on a central AGSS system.
  • Internal adjusting valve ensures the required vacuum flow.
  • Very quiet operation

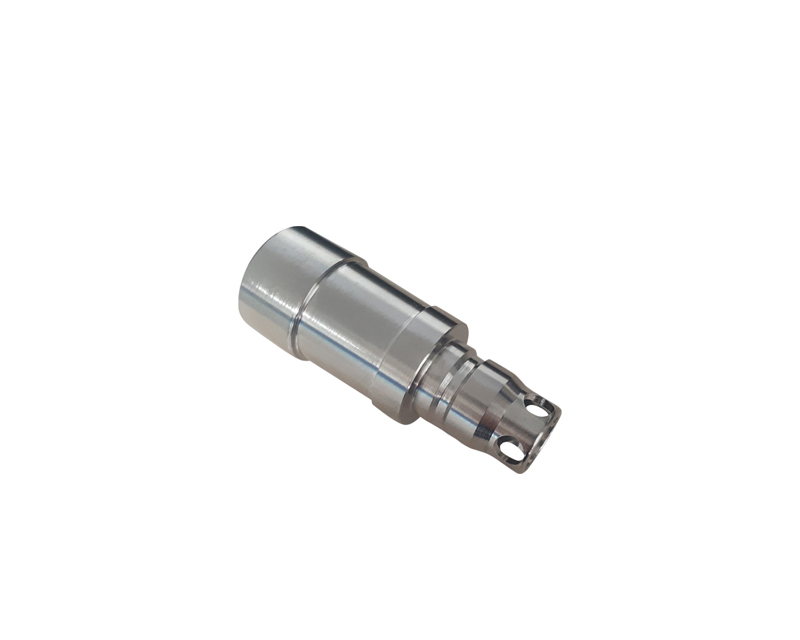

  • Automatic shut off when the probe is disconnected
  • Locking mechanism quick connect
  • Easy installation
  • Easy to maintain



  • Applicable Standards:
    • ISO 9170-2
  • Silbermann’s Quality Management System:
    • EN ISO 13485-2016
    • ISO 9001-2015
    • CE marked
  • Medical Gas System Standards:
    • ISO 7396-1
    • NFPA99
    • HTM 02-01
    • G0-1





Technical Data

  • Inlet pressure: 3.5-5 bars
  • Outlet flow: 40 LPM
  • Free air suction capacity:
  • Adjustable 50 LPM
  • Vacuum level: Adjustable 20-50 cmH2O
  • Exhaust pipe diameter: OD 7/8” nominal 20 cm long, K type.



Material of construction:

  • Box: Baked painted Aluminum
  • Front Panel: Aluminum
