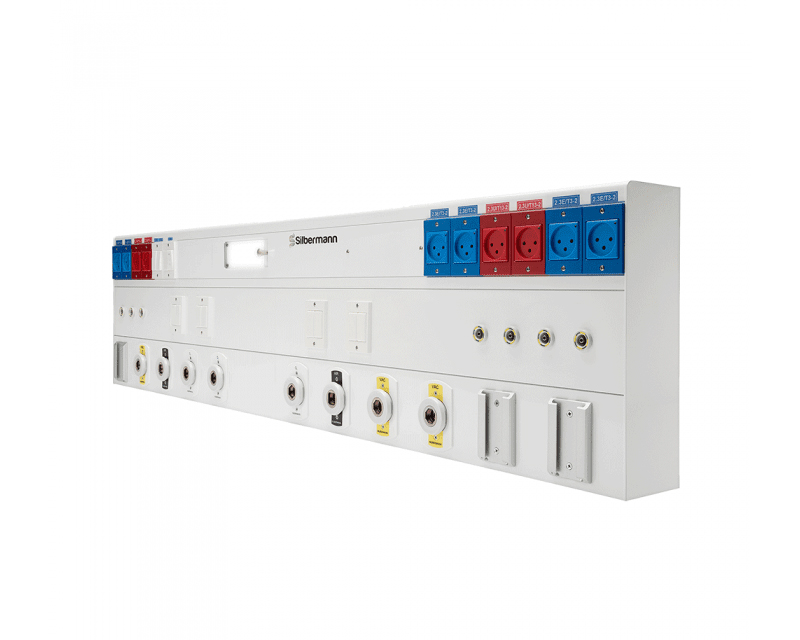

Bed Head Unit Jupiter Type (BHU)

Sleek Bed Head Unit with Centralized Gas, Power & Communication

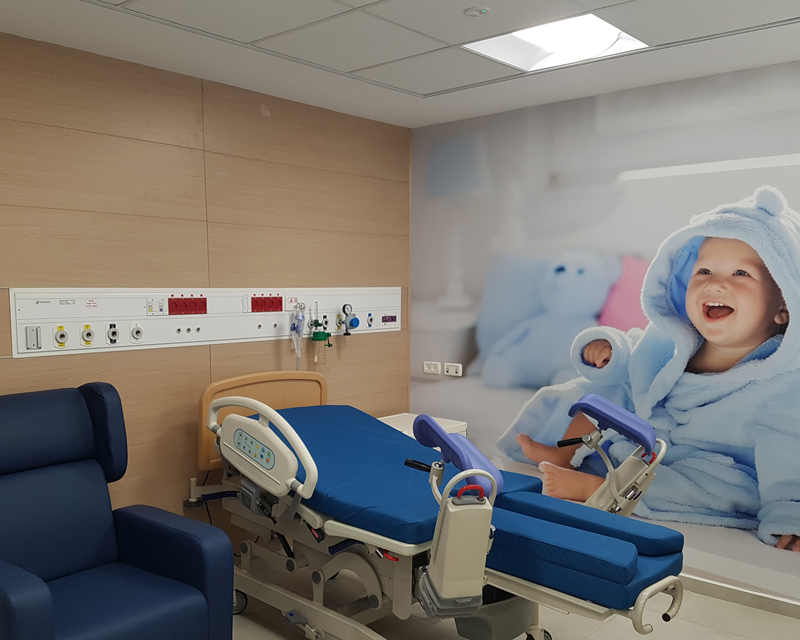

The Silbermann Bed Head Unit Jupiter Type model is designed for use in all medical care environments. It is commonly used in ICUs, ERs, hospitalization wards, and recovery rooms.

This BHU is fully customizable to fit your specifications and medical needs, providing a convenient and flexible supply of electrical power, lighting, medical gases, and communications to the head of the hospital bed.

Request Information

Downloads

Spec Sheet

Features & Benefits

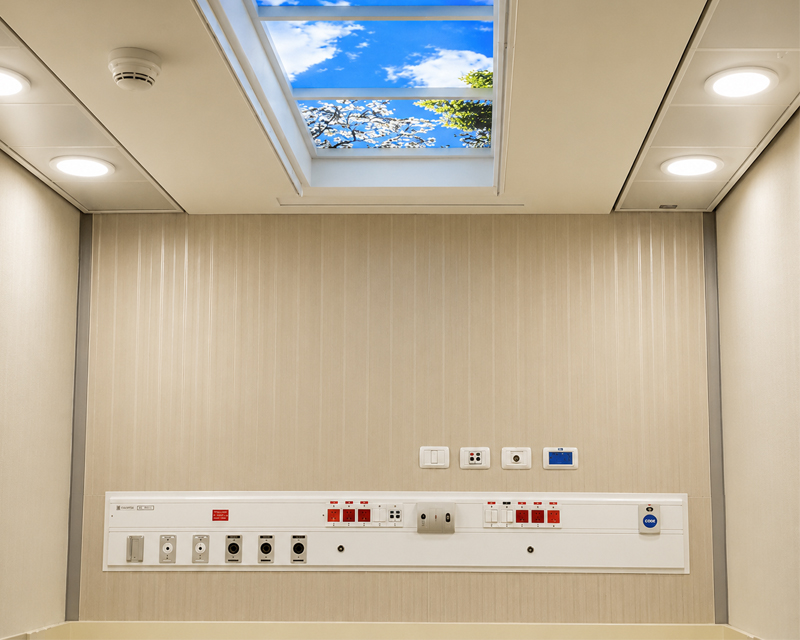

Jupiter model is offered in a single or multi-bed configuration and can also be installed as flush with wall.

Can be supplied in two duct configurations for regular wards or three-duct configuration for more critical wards.

The bedhead unit includes various accessories: direct & indirect lighting, electric socket, switches, nurse calls, monitor outlets and medical gas outlets Silbermann’s or by customer request

The bedhead unit is designed for easy installation and to compensate for irregularities in the wall on which the unit is installed.

White baked painted or by customer request.

The bedhead unit is mounted on the wall by mounting fixtures and maybe connected to an interface box which is installed in the wall during the pipeline installation phase.

Applicable standards:
NFPA99, EN ISO 7396-1, G-01 & HTM requirements

Silbermann’s Quality Management System:
- ISO 9001-2015 EN
- ISO 13485-2016
- CE marked

Technical Data

Material: Extruded baked white (RAL 9016) painted aluminum ducts.

Electric socket: American, British, German, Euro standard and other. Equipotential sockets.

Lighting Options:
- Reading LED glare-free light
- Direct/Examination lamp (supplied separately)
- Light ON/OFF switch

Communication Options:
- Monitor socket (RJ45)
- Nurse call
- Intercom
- Code blue
Medical Gas Outlets:
- Outlet type: SILBERMANN (Diamond type), ENV 737-6, DIN 13260-2, BS 5682, DISS, NIST, Puritan Bennett, AGSS type, and others.
- Gas type: Oxygen, Air, Nitrous Oxide (N2O), Nitrogen, Carbon Dioxide(CO2), Vacuum, Slide for Vacuum Bottle. Other (by customer specification).

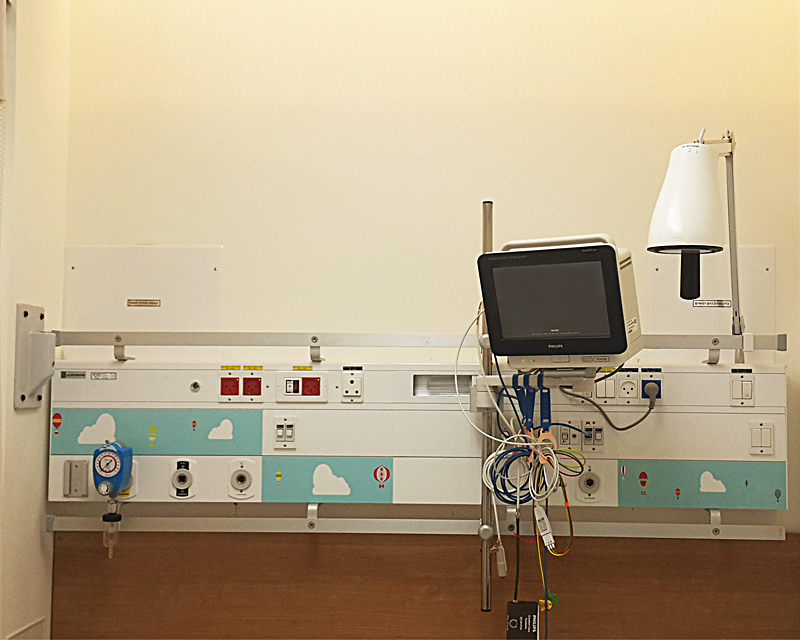

Hanging Rails (optional):
- On the upper and/or lower sides of the bed head unit
- Dimensions: 25x10mm or 35x8mm
Pipe Connection:
- From the side end (exposed), from the upper end (exposed)
- Recessed pipe connection: Via valves interface box (optional)
