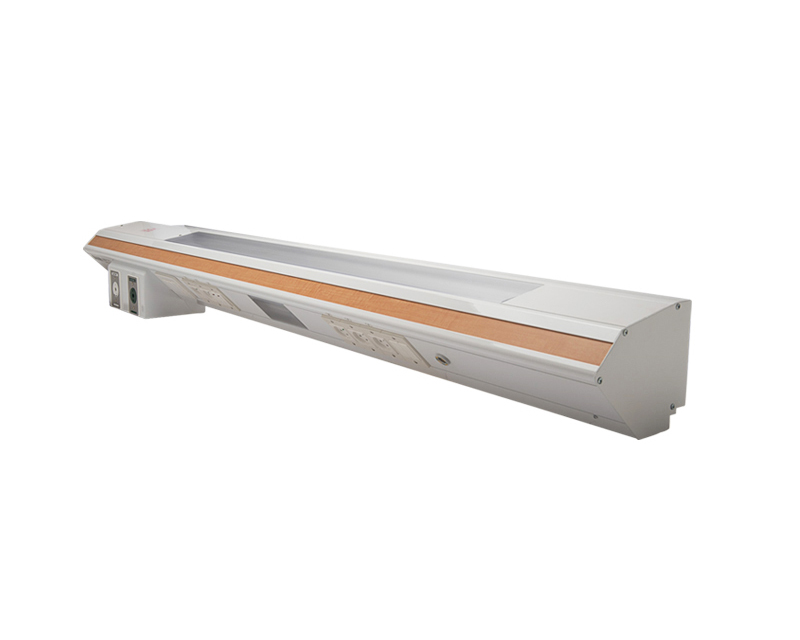

Bed Head Unit Model 2000

•  The bedhead unit is designed for easy installation and to compensate
• for irregularities in the wall on which the unit is installed.
• The bedhead unit is color-painted (colors and shade of the duct and decorative strip from Silbermann’s selection or by special request)
• The bedhead unit can serve up to 3 beds at once, with up to 4 gas outlets for each bed – 2 X Oxygen, Air, Vacuum (3 types of gases).
• The bedhead unit includes: direct & indirect lighting, electric sockets,  switches, telephone, nurse calls, monitor outlets, and medical gas outlets, Silbermann’s, or by customer request.
• All Medical gas, electricity, and communications are divided into three separate ducts.

Applicable standards:

• NFPA99, EN ISO 7396-1, G-01 & HTM requirements.

Silbermann’s Quality Management System:

• ISO 9001-2015.
• EN ISO 13485-2016.
• CE marked by the notified body TÜV-SÜD.

• Medical Gas Outlets:
  • Outlet type: Silbermann (Diamond type), ENV 737-6, DIN 13260-2, DISS, NIST, BS5682, Puritan Bennet type, and others.
  • Gas type: Oxygen, Air, Nitrous Oxide(N2O), Nitrogen, CO2, Vacuum, Slide for the vacuum bottle. Other (by customer specification).
  • The bedhead unit may include medical gas pipes 1/2” nom. For oxygen, 1/2” for medical air, 1/2” or 3/4” for vacuum pipes.
  • The bedhead unit may include electrical receptacles and ground sockets.

•  Pipe Connection:
  • From the upper end (Exposed).
  • Recessed pipe connection via interface box (optional).
