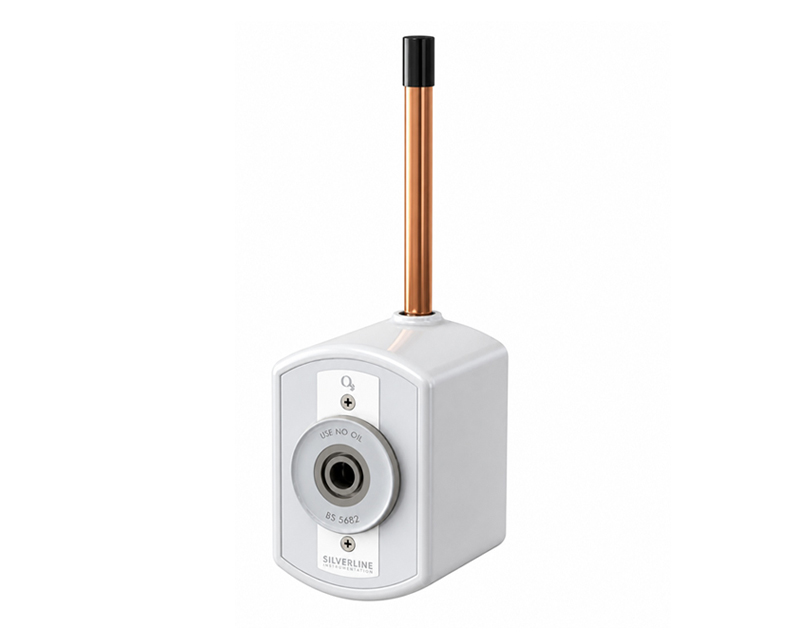

BS Type medical gas outlet

Reliable BS Gas Outlet for Various Gas Types and versatile installation

Our BS-type medical gas outlets combine durable engineering with consistent gas delivery to optimize patient care and power vital medical equipment

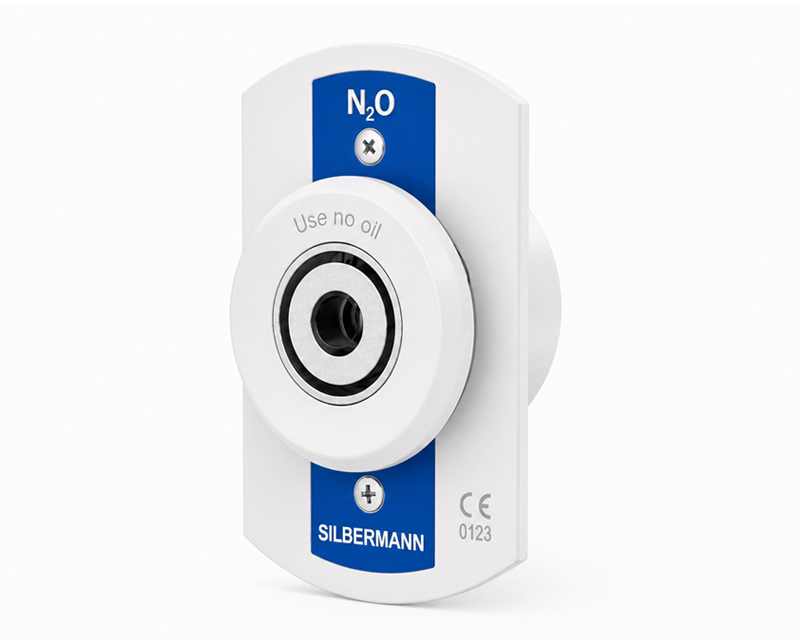

Available for various gas types, including Oxygen, Medical Air, and Vacuum.

Color-coded identification for enhanced safety and ease of use.

Our outlets adapt to various clinical environments with flexible installation configurations:

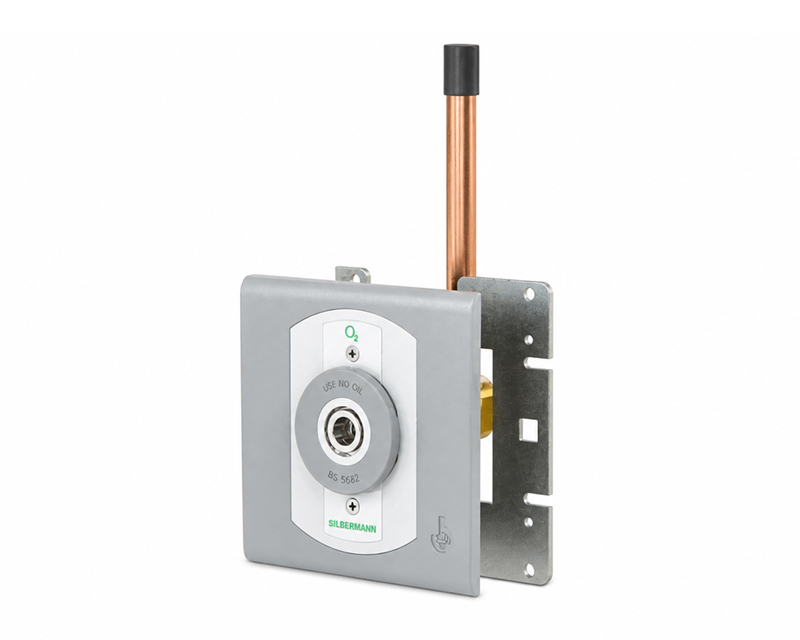

Wall-Mounted: Ideal for standard patient rooms and recovery areas.

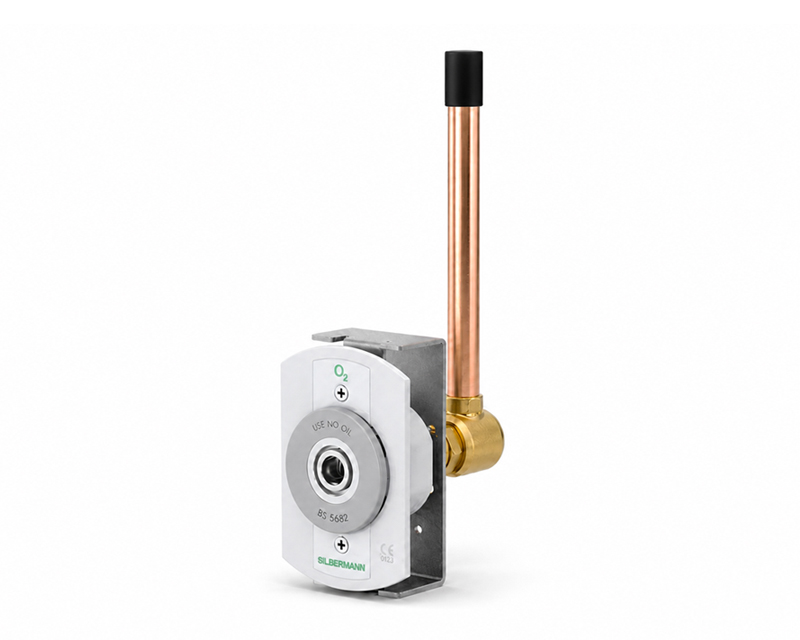

Panel-Mounted: Designed for seamless integration into bed head units and architectural panels.
Pendant-Mounted: Perfect for flexible, ceiling-suspended access in operating theaters and intensive care units (ICUs).

We subject every outlet to strict flow and leakage testing, and carefully clean each unit before shipment

Our British standard outlets are designed by industrial designers to ensure an appealing and pleasant environment for the patient and the medical staff.

Request Information

Downloads

Features and benefits

Accepts BS 5682 gas-specific adapters.
To ensure maximum safety, all British Standard medical gas outlets are comprehensively tested for leaks. They arrive fully factory-assembled, degreased, and meticulously cleaned specifically for medical gas environments.
Each outlet is indexed by gas type to support safe, correct medical gas connections.
Modular singles – designed to provide ganging of rough-in modules in the field to form multiples at any order with 120mm spacing.
360-degree swivel inlet pipe for ease of installation.
Optional – Outlets for MRI use are available upon customer request.
Medical Gas System Standards:
- NFPA99, EN ISO 7396-1 & HTM 02-01 requirements.
Applicable Standards:
- ISO 9170-1, BS 5682.
Silbermann’s Quality Management System:
- CE marked by the notified body TÜV-SÜD.

Technical Data:

The medical gas outlet shall be SILBERMANN BS type BS 5682
The outlet shall be gas-specific by indexing each front service panel to a gas-specific pin-indexed rough-in module.
The outlet of positive and negative pressure shall consist of a primary and secondary check valves to allow testing and online maintenance.
Outlet shall be manufactured with 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. Rough-in pipe shall be silver brazed to the outlet body
A newly designed facia frame shall cover the outlet
With the rough-in mounted, the outlet shall be depth-adjustable to compensate for various wall thicknesses.
The outlet shall comply with ISO 9170-1 standard type, quick connect and accept only the corresponding BS 5682 Gas Specific Adapter.
Pressure drop of less than 20 Kpa through the outlet at 120 LPM and 350 Kpa (3.5 Bar) inlet pressure…
When fully open, the outlet allows a flow of up to 600LPM and pressure of 400 KPa (4 Bars).
