Mazor-AU: Fully Automatic Digital Medical Gas Manifold

Manifold System with Two-Source Control and Monitoring Panel to detect real-time issues

The Mazor-AU Fully Automatic Digital Medical Gas Manifold System is engineered for global compliance, meeting major international healthcare standards:

NFPA 99
EN ISO 7396-1
HTM 02-01
G-01

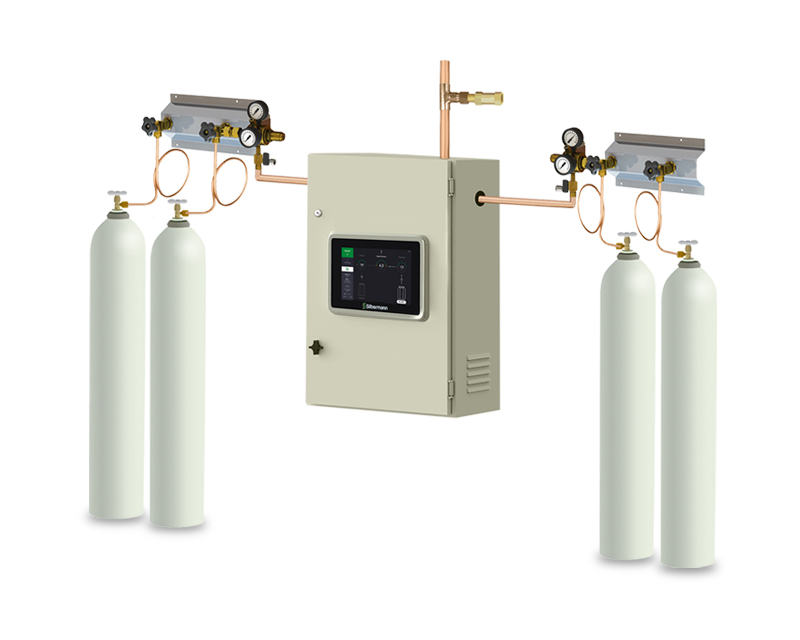

The system manages 2 sources and provides a continuous supply and smooth automatic bank switchover by means of a pneumatic shuttle valve.

The Mazor-AU manifold system is designed for backups or as a main supply system where central systems are not available.

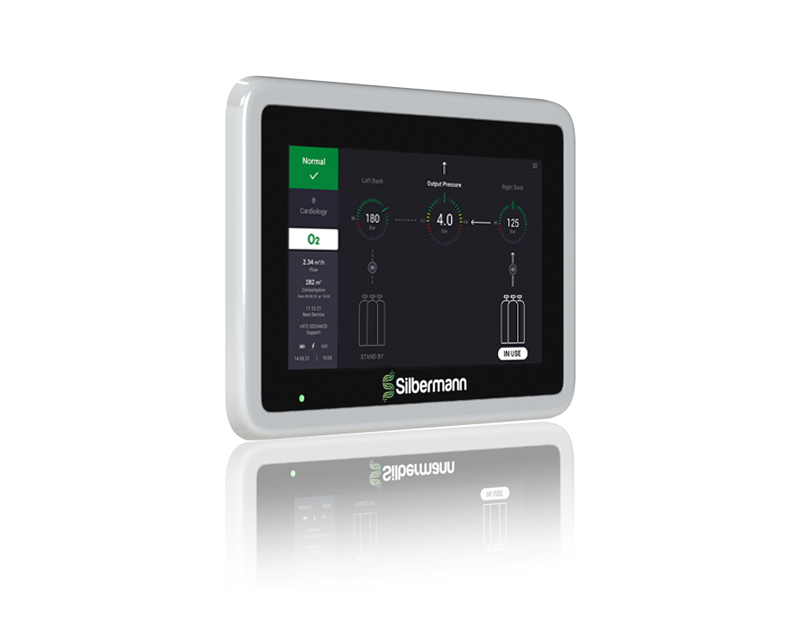

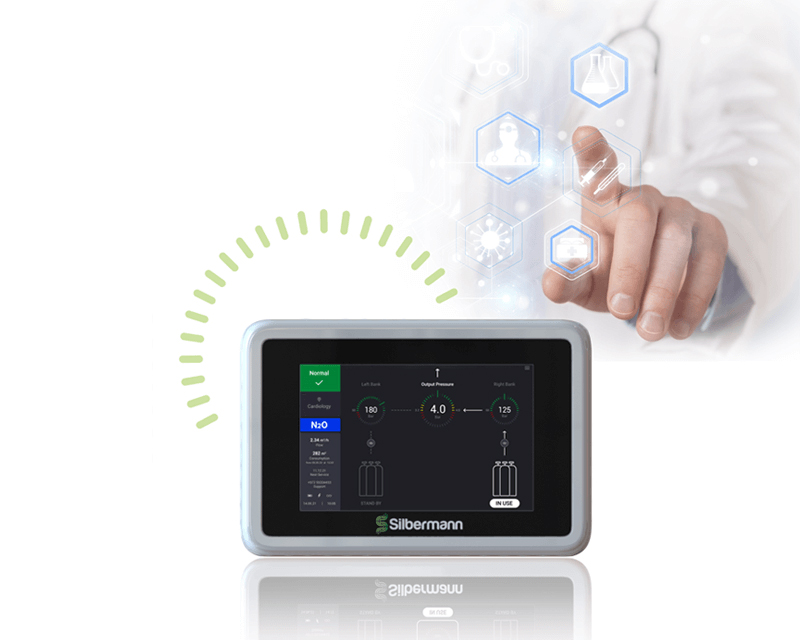

All medical gas information is displayed graphically and digitally on a 12” Full HD LCD touchscreen, providing real-time visualization of issues occurring in the manifold system that could interrupt the gas supply to hospital wards, ensuring critical data is always accessible to hospital staff.

Request Information

Downloads

Brochure

Mazor-AU: Fully Automatic Digital Medical Gas Manifold

Features and benefits

Continuous supply and smooth automatic bank switchover, without pressure fluctuation using a pneumatic shuttle valve.
Maintenance friendly- designed to enable maintenance during operation without disrupt the gas supply.
LCD 12” touch screen display.
Graphically & digitally display the actual status of each source-“In use” or “Stand by”.
Visual & audio alarm signals in case of change between banks, “Below min” and High/Low line supply pressure.
Leak detection from manifolds on Stand-By mode.
Secured Ethernet-based network communication between all units.
Flow & Consumption – Monitors & displays flow rate and consumption of the medical gas*.
Unique secured authentication of each unit to avoid fake/masking of alarms.
A color trend arc showing the gas pressure status on the main line and at each bank
Optional- display of heaters during idle and active states.
Automatic adjustment of screen brightness (day & night mode).
Event logging, recording all alarms and panel activities.
Periodical maintenance alert.
Customizable text & language.
Alarm test & mute buzzer buttons.
Advanced Communication:
- Ethernet Modbus
- Remote monitoring through the building Management system available.
- Option for remote viewing through a mobile device or remote computer.
Silbermann’s Quality Management System:
- EN ISO 13485-2016
- ISO 9001-2015

*Available according to cusomer’s request.

Specifications

Display: 12” HD LCD touchscreen

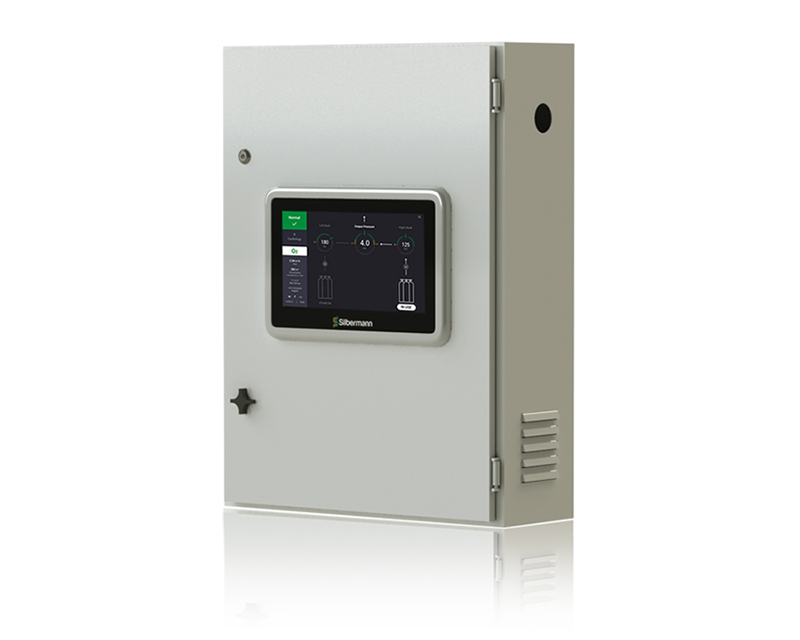

Cabinet with door:
- Material – Galvanized steel
- Dimensions – 60x100x25 cm
- Finish – Baked on powder coated

Piping System: All materials are oxygen compatible and cleaned for oxygen use.

Changeover Unit: Pneumatic.

Flow Capacity (4 Bar):
Standard configuration 90m³/hour
Optional 120 m³/hour
Optional 150 m³/hour
Power Supply: 110-220v, 60-50Hz

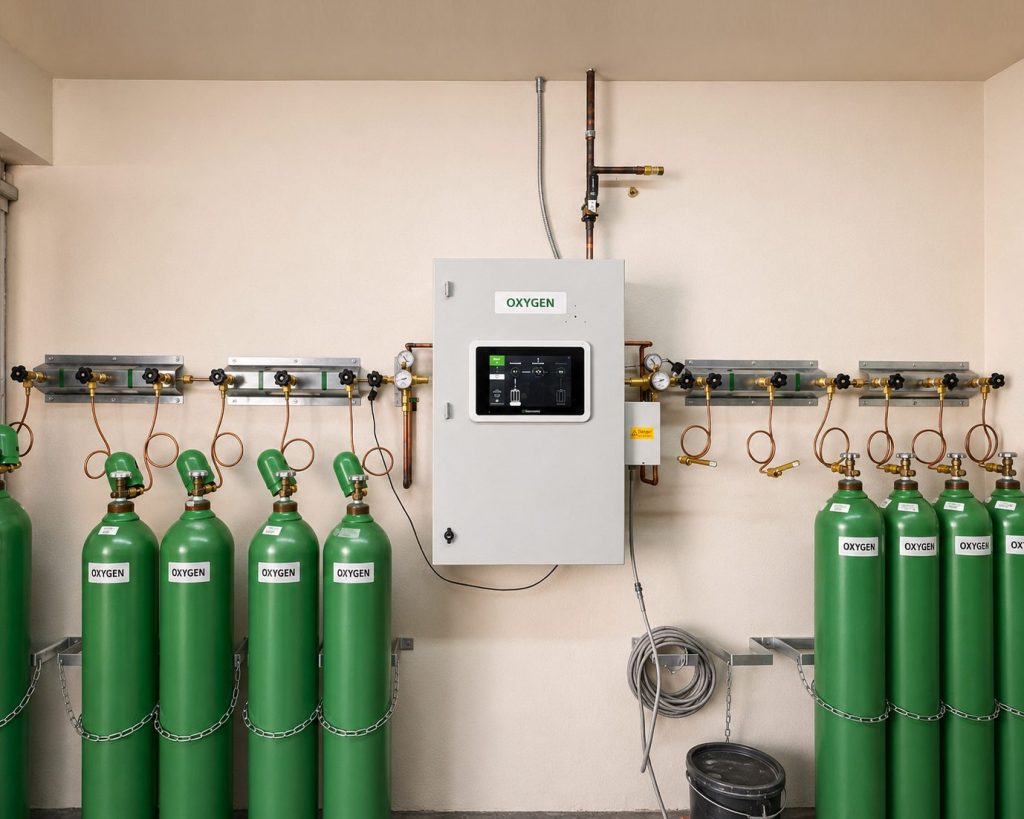

Each cylinder station includes an HP valve, pigtail with integrated NRV and a secure chain.
An electrical power supply unit is installed on the external side of the cabinet. The unit enables automatic connection of 3 supplies:
- Supply from the mains
- Supply from the UPS net
- Supply from batteries (Optional)
Output connections for local alarms:
Two sets of dry contacts NO/NC.
Optional:
- Heaters (for N2O or CO2).
- Bank heavy-duty high-pressure filters.
