The SILBERMANN control panel supplies adjustable pressure, as required, to pneumatic-driven surgical tools in the operating theaters.
It meets the latest and most rigid American NFPA99 and European EN ISO 7396-1 requirements.

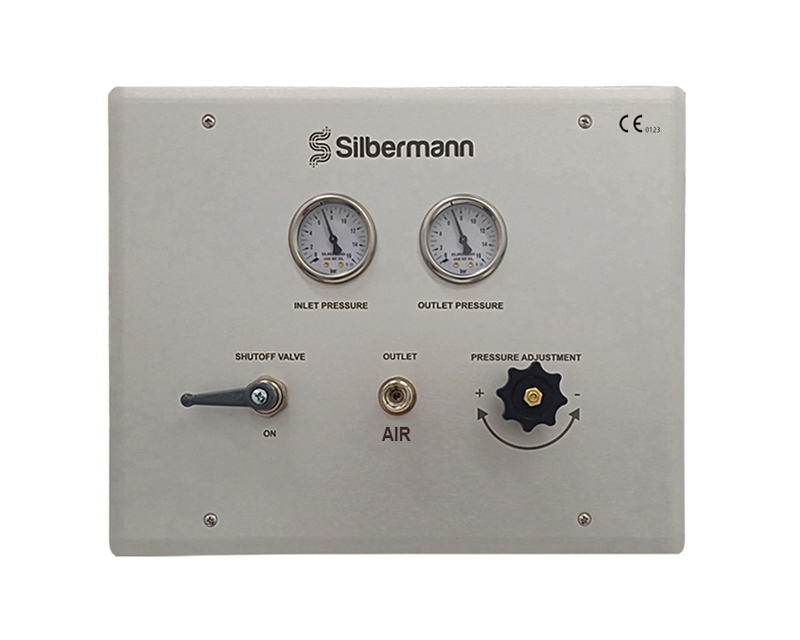

Pneumatic Control Panel for Surgical Tools
Medical Panel for adjusting the Pressure delivered to Pneumatic Surgical Devices
Features and benefits
- Compatible with Nitrogen or Industrial Air.
- Easy, safe, and reliable connection between the medical equipment and the medical gas distribution system.
- Anodized Aluminum front with rounded edges for aesthetic appeal.
- Manual shut-off valve
- Inlet & outlet pressure gauges
- DISS or NIST outlet connection
- A Knob to adjust outlet pressure
- Medical Gas System Standards:
- NFPA99, EN ISO 7396-1
- Silbermann’s Quality Management System:
- ISO 9001-2015
- ISO 13485-2016
- CE mark
Technical Data
- Panel: 3 mm anodized Aluminum plate.
- Compatible with Nitrogen or Instrument Air.
- Box: Galvanized steel case, powder-coated Ral 9016 (White).
- Inlet Pressure Guage: 0 – 25 bars.
- Adjusted Pressure: 0.5-16 bar.
- Flow Capacity:
- 70 m3/h @ 10 bar
- 90 m3/h @ 16 bar
