Which standards apply to the Single Arm Fixed Pendant?

The Single Arm Fixed Pendant meets the requirements of NFPA 99, EN ISO 11197, and EN ISO 7396-1. It is CE marked and manufactured under Silbermann’s Quality Management System, which is certified to ISO 9001:2015 and EN ISO 13485:2016.

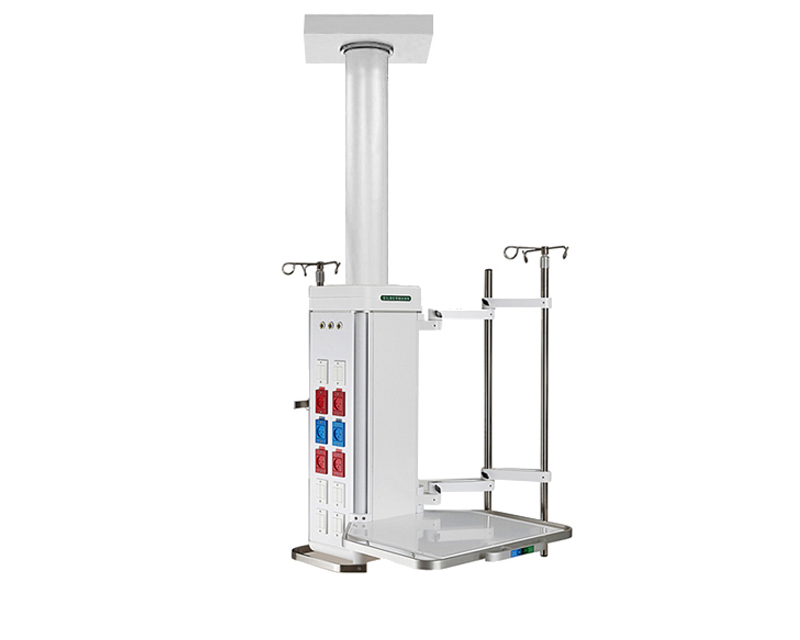

Single-arm fixed pendant

Q: What is the Silbermann Single Arm Fixed Pendant?

The Silbermann Single Arm Fixed Pendant is a ceiling-mounted medical supply unit that brings medical gases, electrical power, data connections, and equipment support together within easy reach of the clinical team. Its rotating service head provides flexible access to services and accessories at the point of care, making it suitable for compact clinical spaces and for adding fixed ceiling-mounted services in operating rooms.

Q: Why choose a Single Arm Fixed Pendant?

The Single Arm Fixed Pendant is a practical and cost-effective choice when ceiling-mounted medical services are needed without a large articulated arm system. It saves space, keeps cables and medical gas lines off the floor, and its rotating service head provides easy access to medical gases, electrical power, data connections, and accessories around the patient.

Q: What is the maximum load capacity of the Single Arm Fixed Pendant?

The Single Arm Fixed Pendant has a maximum load capacity of up to 120 kg. This load includes the weight of the service head and all mounted medical equipment or accessories.

The single-arm fixed pendant is a ceiling-mounted, single-unit system designed for intensive medical care.

It features a rotating service arm and functions as an auxiliary pendant in operating theatres.

This single console is directly connected to the ceiling and is particularly suitable for use in small rooms.
It allows easy access to medical equipment at the point of care.

With its modular design and high load capacity, this single-arm pendant can carry a variety of instruments for the ICU and operating rooms.

Request Information

Product's Downloads

Spec Sheet

Brochure

Features and benefits

Smooth rotation and precise positioning
Ceiling-mounted cable management keeps cables organized and off the floor, helping maintain a cleaner and safer clinical environment.
Integrated friction brakes in the bearing assembly help prevent unintended creeping or gradual movement after positioning.
- Bearings are maintenance-free.
All accessories are detachable and interchangeable, allowing flexible configuration according to clinical requirements.
Designed to provide optimal access around the patient area.
The service head provides optional docking facilities to various carts carrying instruments.
The service head is equipped with electric sockets, medical gas outlets, gauges, equipotential pins, connectors for data transfer, video recording telephone, intercom, nurse call & code blue.
The service head has mounting slides on four sides for various accessories:
- Shelves size 550×500 may be front, sides, or back mounted.
- Drawers under the shelf are available.
- Stainless steel IVF poles with height-adjustable slow descending mechanism.
  3 hook rods may be attached to the service head.
Height adjustable hanging rails may be mounted on the poles of the service head to carry oxygen and vacuum therapy equipment.
An endoscopic equipment holder can be added and clamped to a rail on the side of the service head.
