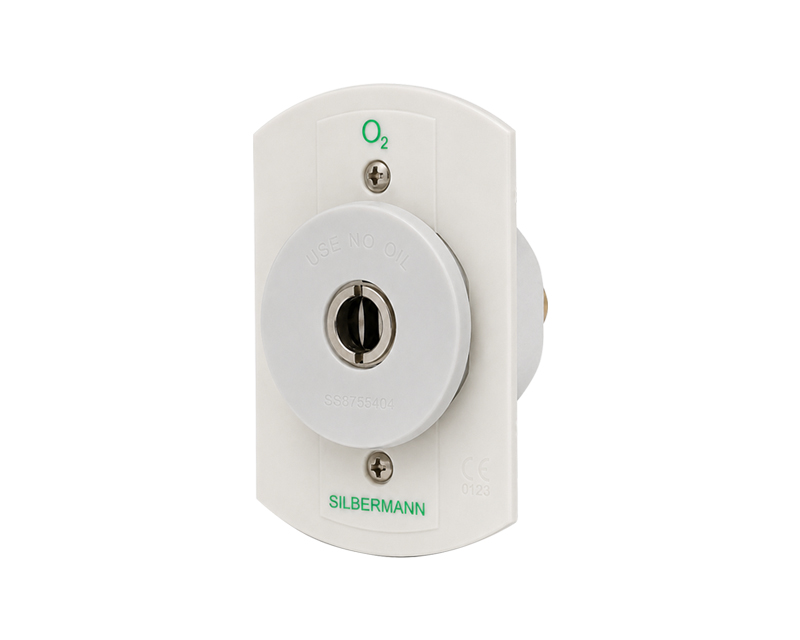

SS 8752430 type

High-Quality AGA Medical Gas Outlet for Safe and Reliable Gas Delivery

Silbermann manufactures the AGA medical gas outlet, also known as a terminal unit, in accordance with Swedish Standard SS 8752430.

The product complies with the applicable requirements of EN ISO 7396-1 and NFPA 99 and is CE marked by the notified body TÜV SÜD.

Our medical gas outlets are designed for long-term durability and reliable gas delivery to patients and connected medical equipment. Developed in collaboration with industrial designers, they combine dependable performance with a clean, modern appearance that supports a comfortable and professional healthcare environment.

the AGA medical gas outlet features gas-specific indexing to help prevent incorrect gas connections.

Each outlet undergoes flow and leakage testing and is cleaned for oxygen service before shipment.

Compatible with various gas types, including:

Oxygen
Medical Air
CO₂
Nitrous Oxide

Request Information

Product's Downloads

Spec Sheet

Features and benefits

Accepts AGA type, Swedish Standard SS 8752430 gas specific adapters.
All outlets are 100% hydrostatic tested for leaks. The outlets are factory assebled, degreased and cleaned for medical gas service.
Indexed to eliminate interchangeability of gas services.
Low maintenance due to use of VITON seals in front assembly (latch valve).
Modular singles – designed to provide ganging of rough-in modules in the field to form multiples at any order with 120mm spacing.

Medical Gas System Standards:

NFPA99 & EN ISO 7396-1 requirements.

Applicable Standards:

SS 8752430
ISO 9170

Silbermann’s Quality Management System:

CE marked

Technical Data

The medical gas outlet shall be SILBERMANN AGA type manufactured according to SS 8752430.
The outlet shall be gas specific by indexing. each front service panel to a gas specific pin indexed rough-in module.
A secondary check valve prevents gas leakage when the plug-in coupling is removed, enabling maintenance without interrupting the medical gas supply to other outlets or hospital departments.
Outlet shall be manufactured with 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. Rough-in pipe shall be silver brazed to the outlet body.
With the rough-in mounted, the outlet shall be depth adjustable to compensate for various wall thicknesses.
The quick connect outlet shall comply with SS 8752430 standard type and accept only corresponding Gas Specific Adapter.
When fully open, the outlet allows a flow of up to 600LPM and pressure of 400 KPa (4 Bars).
