Medical Gas Zone Valve Box

Reliable shut-off valves for medical gas pipeline safety and maintenance

The Silbermann Zone Valve Box supports patient safety by controlling medical gas supplies to designated areas, including operating rooms, intensive care units, and patient wards. Its shut-off valves let teams isolate specific zones during a leak, emergency, or planned maintenance without disrupting medical gas delivery to other areas of the facility.

The Zone Valve box serves gases such as:

oxygen
medical air
nitrous oxide
vacuum.

Each service has its own shut-off valve, allowing staff to isolate one medical gas line without interrupting the others. Includes color-coded labels.

Available with a pull-out removable window or an aluminium door.

Request Information

Product's Downloads

Spec Sheet

Technical Data

Zone valve box shall be Silbermann series.
Each recessed/exposed zone valve shall consist of a steel valve box constructed of a 1.5 mm steel sheet, complete with a backed enamel finish RAL 9016, which can house single or multiple shut-off ball valves with tube extensions.
Valves shall be a 3-piece forged brass and a 4-bolt design, bronze or brass body, stem, ball bolts, and nuts shall be made of stainless steel, double seal, full port union ball type, with Teflon (RPTFE) seats and Viton seals, with a pressure rating of 4080 kPa (600 psi) or 40.8 bars.
Valves shall be operated by a lever-type handle requiring only a quarter turn from a fully opened to a fully closed position. All valves shall be equipped with type “K” washed and degreased copper pipe stub extensions of sufficient length to protrude beyond the sides of the box.
All pipe stub extensions shall be supplied with suitable plugs or caps to prevent assembly contamination before installation.
Each valve shall be supplied with a medical gas identification label.
Valves shall be available with or without line pressure gauges, as required. Gauges shall be 50 mm in diameter.
Pressure gauges shall read 0-1100 kPa (0-11 bar) for all gauges except Nitrogen shall read 0-2500 kPa (0-25 bar), and Vacuum shall read 0-100 kPa (0-760 mmHg).
There are two front options:

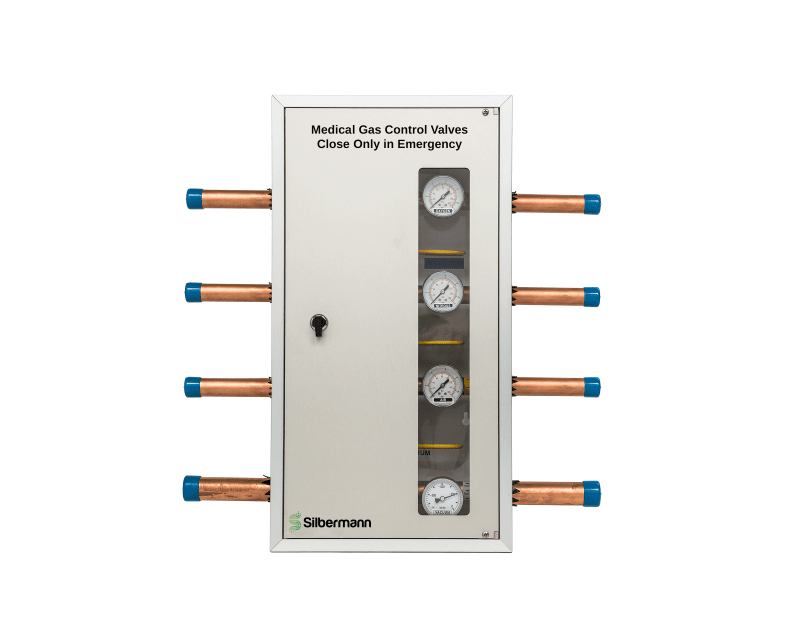

- Aluminum door

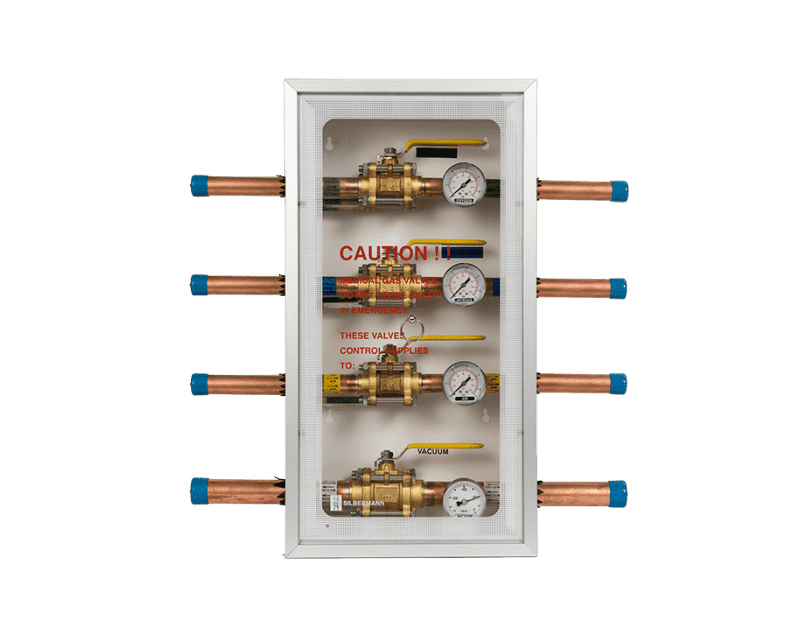

- pull-out removable window.
