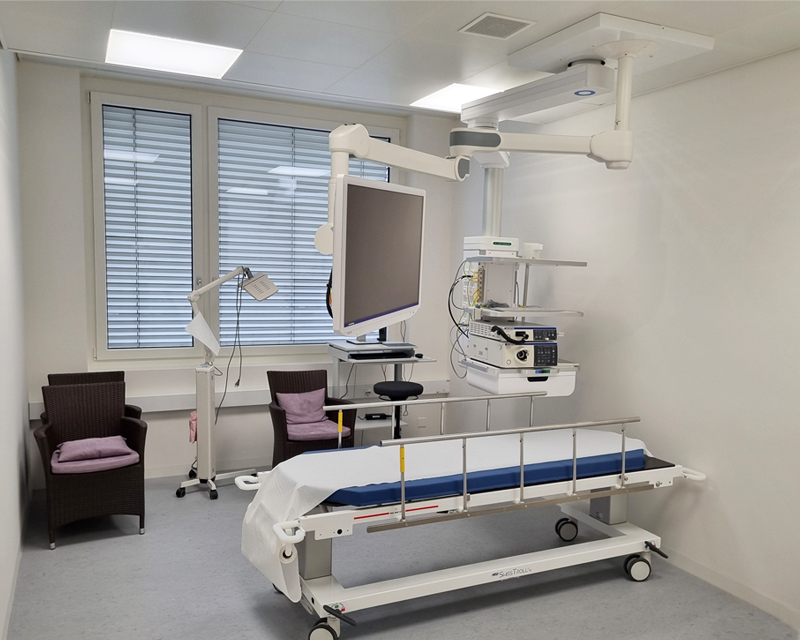

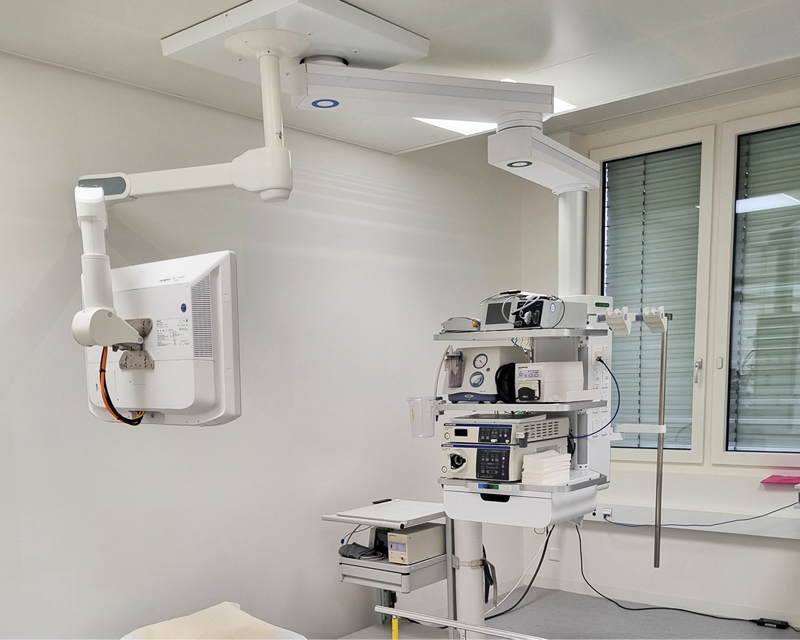

Single Overhead Suspension System for Endoscopic Applications

Medical Pendant for Endoscopic Equipment Management

The Silbermann Single Overhead Suspension System for Endoscopic Applications offers flexibility, easily conforming to various space, function, and purpose requirements

The service head allows for attachment of numerous shelves, front or back mounted, and provides optional docking facilities to various carts carrying instruments.

Request Information

Product's Downloads

Spec Sheet

Brochure

Single Overhead Suspension System for Endoscopic Applications

Features and benefits

Easy moving & positioning that enables a quick adaptation to changing situations, Especially in Emergency cases.

Cable management – the neat and organized cables and their hanging system from the ceiling to prevent hospital-acquired infection.

Locked position-brake handles that can be individually adapted to specific work processes. The pneumatic brake control is installed on the service head via two buttons. These pneumatic or mechanical brakes enable the control of the main bearing break and the intermediate bearing break.
There’s an option to add a pneumatic service head rotation brake.
- The ball bearings are maintenance-free.

Maximum access around the patient.
Two articulated arms allow for a greater range of motion and positioning choices.
All accessories are detachable and interchangeable.

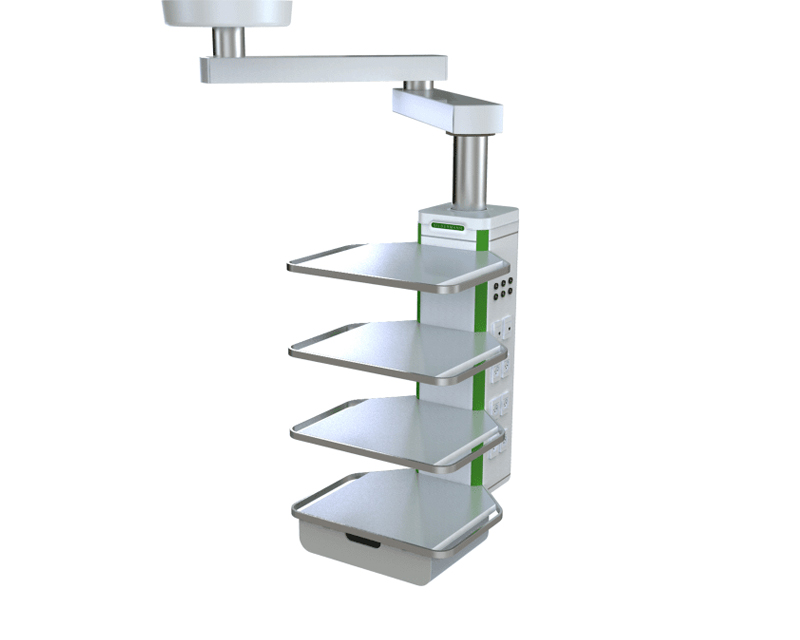

The service head has mounting slides on four sides for various accessories:

- Shelves size 550×500 may be front, sides, or back mounted.
- Drawers under the shelf are available.
- Stainless steel IVF poles with a height-adjustable slow descending 3 hook rods may be attached to the service head.
- Height adjustable hanging rails may be mounted on the poles of the service head to carry oxygen and vacuum therapy equipment.
An endoscopic equipment holder can be added and clamped to a rail on the side of the service head.
The service head provides optional docking facilities to various carts carrying instruments.
The service head provides electric sockets, medical gas outlets, gauges, equipotential pins, connectors for data transfer, video recording telephone, intercom, nurse call & code blue.
