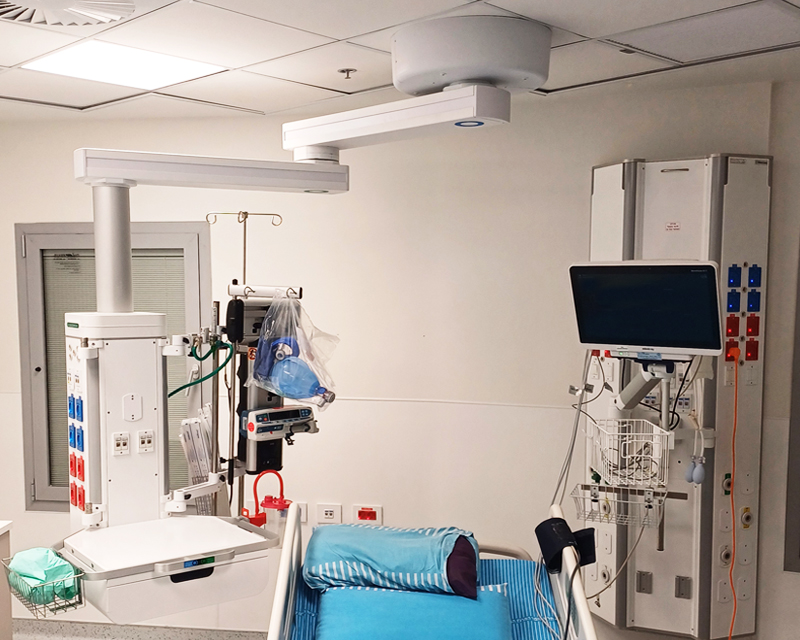

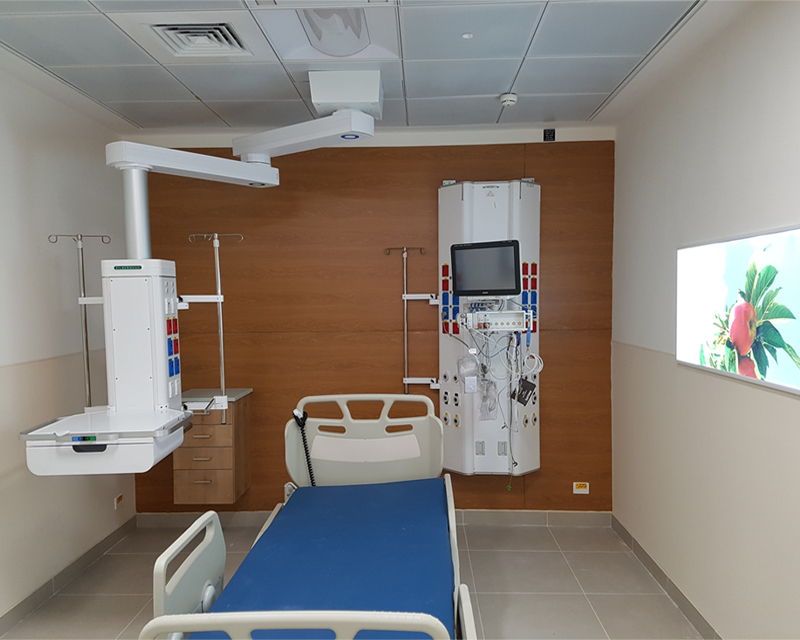

Single Overhead Suspension System for O.R. & I.C.U

Q: What is a single-arm medical pendant used for in an OR or ICU?

Silbermann’s single-arm medical pendant is a ceiling-mounted medical pendant that organizes medical services and equipment around the patient. Its modular, high-load design and articulated arm system provide flexible positioning in operating rooms, ICUs, and other critical care areas.

Q: Can the single-arm medical pendant be customized?

Yes. The single-arm medical pendant can be configured to meet the requirements of each project, including arm length, service head height, medical gas outlets, electrical and data connections, pressure gauges, and accessory arrangement.

Q: How can the single-arm medical pendant be moved and positioned?

The single-arm medical pendant moves horizontally through its articulated arm, allowing the service head to be repositioned around the clinical workspace. The wide rotation range makes it possible to bring equipment and medical services closer to the patient and move them away when additional access is required.

Q: Why are pneumatic brakes important in the single-arm medical pendant?

Pneumatic brakes help the clinical team control the pendant’s position during use. They allow the arm to be released, repositioned, and locked securely, making the system easier to handle during routine work and changing clinical situations.

Q: Which standards apply to the single-arm medical pendant?

Silbermann’s single-arm medical pendant meets the requirements of NFPA 99, EN ISO 11197, and EN ISO 7396-1. It is CE marked and manufactured under Silbermann’s Quality Management System, which is certified to EN ISO 13485:2016 and ISO 9001:2015.

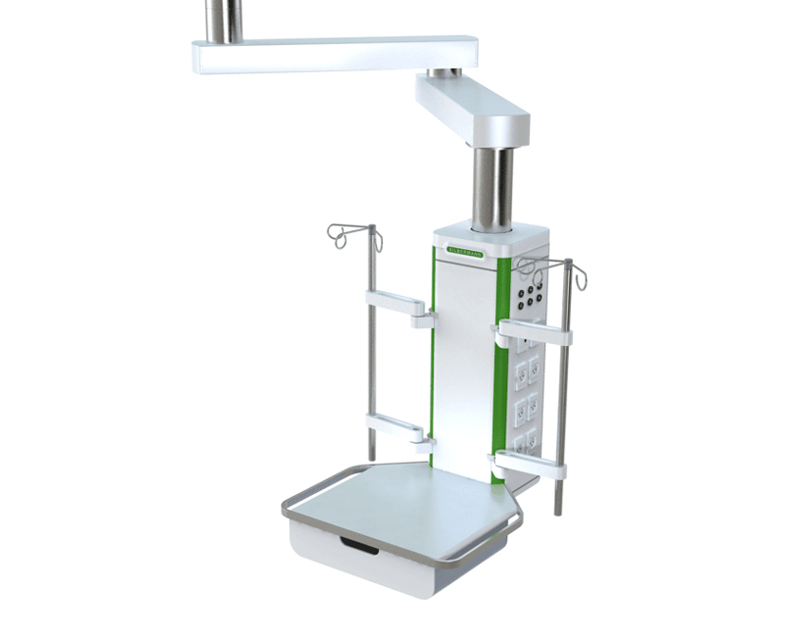

Single medical pendant with dual articulated arms for high equipment loads in OR & ICU

The Single Overhead Suspension System with two articulated arms meets the demands of Intensive medical care and OR requirements.

High technology and human engineering come together to create a system that supports medical staff and fosters a friendly environment around the intensive care/OR area.

With its modular design and high load capacity, this medical pendant can carry a variety of medical equipment for ICUs, ORs, and all other critical care areas.

Request Information

Product's Downloads

Spec Sheet

Brochure

Single Overhead Suspension System for O.R. & I.C.U

Features and benefits

Easy movement and precise positioning allow the system to adapt quickly to changing clinical situations, especially during emergencies.
Cable Management – Ceiling-suspended cable routing keeps cables neatly organized and off the floor, supporting easier cleaning and helping reduce the risk of hospital-acquired infections.
Locked position – brake handles that can be individually adapted to specific work processes. The pneumatic brake control is installed on the service head via two buttons. These pneumatic or mechanical brakes enable the control of the main bearing break and the intermediate bearing break. There’s an option to add a pneumatic service head rotation brake.
- The ball bearings are maintenance-free.
Dual Articulated Arms – Provide an extended range of motion and greater flexibility in equipment positioning.
Detachable Accessories – All accessories can be easily removed, replaced, or exchanged as needed.
Patient Access – Enables optimal access to the patient from all sides.

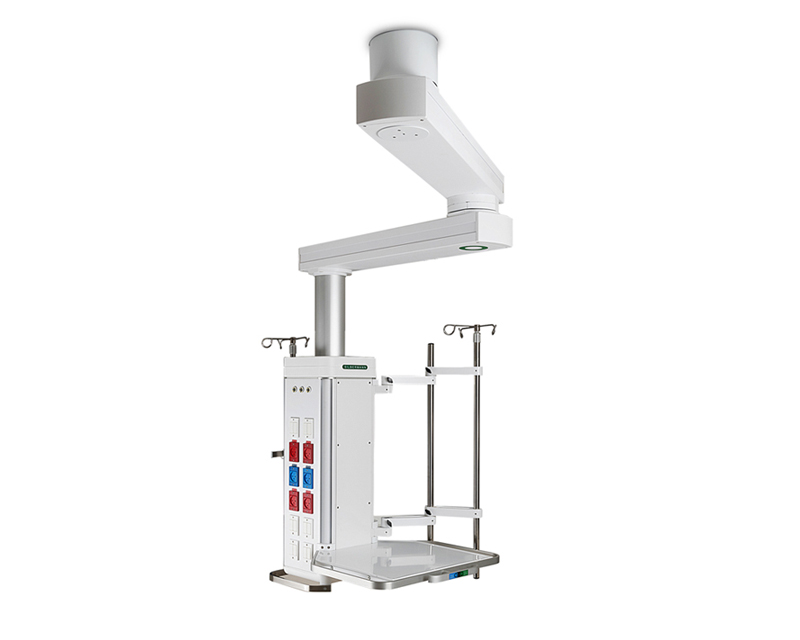

The service head has mounting slides on four sides for various accessories:
- Shelves – 550 × 500 mm shelves can be mounted at the front, sides, or rear of the system.
- Drawers with shock absorbing rails under the shelf are available.
- Stainless steel IVF poles with height-adjustable slow descending mechanism. 3 hook rods may be attached to the service head.
- Height adjustable hanging rails may be mounted on the poles of the service head to carry oxygen and vacuum therapy equipment.
- An optional small tray (400×300 mm) can mounted on the service head.
- An endoscopic equipment holder can be added and clamped to a rail on the side of the service head.
The service head provides electric sockets, medical gas outlets, equipotential pins, and various electronic connectors that can be mounted.
